KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 103

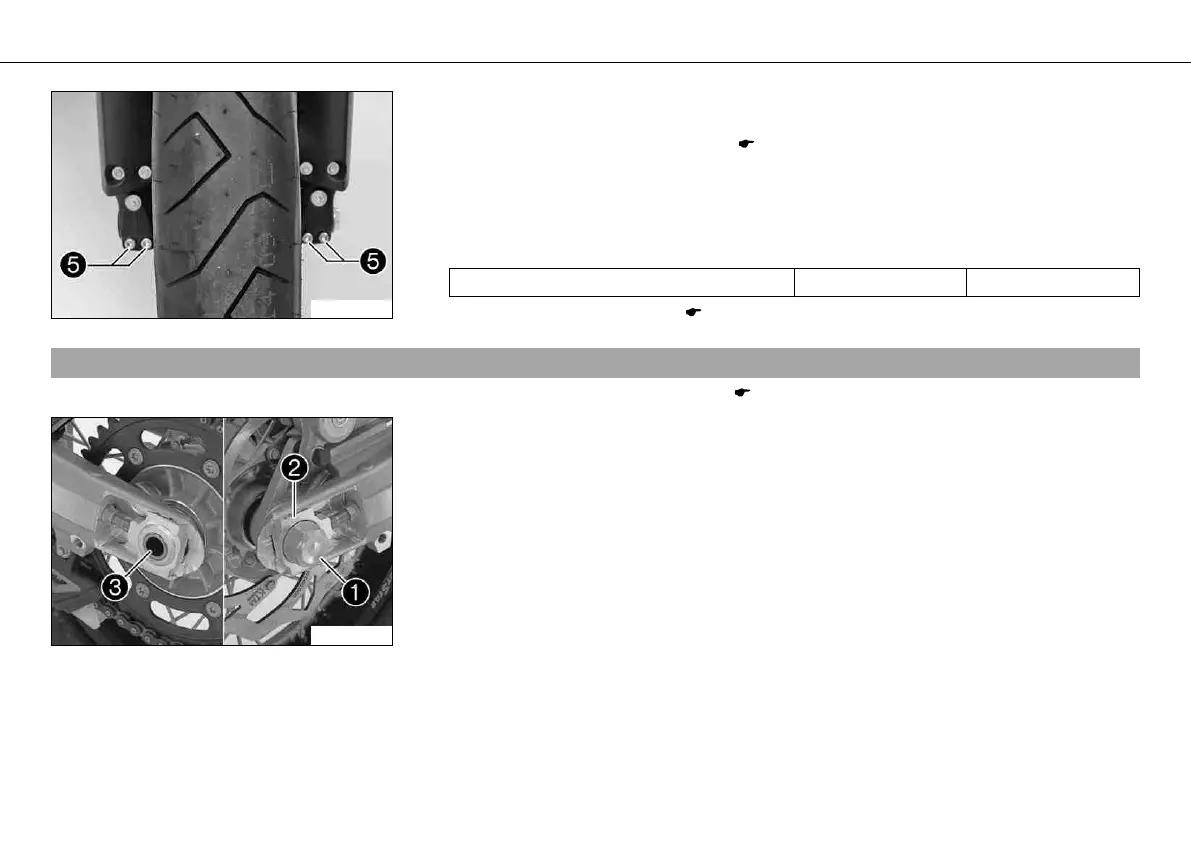

600490-11
– Operate the hand brake lever several times until the brake pads are lying correctly on
the brake disc.
– Take the front from the work stand. ( S. 63)
– Pull the front wheel brake and push down hard on the fork several times to align the
fork legs.
– Fully tighten screw.
Guideline
Screw, fork stub M8 15Nm (11.1lbfft)
– Taking rear from work stand. ( S. 64)
9.45Removing rear wheelx
– Jack up the rear of the motorcycle. ( S. 64)
100267-10
– Press the brake caliper by hand on to the brake disc in order to press back the brake
piston.
– Remove nut. Remove chain adjuster.
– Holding the rear wheel, withdraw the wheel spindle.
