KTM 690 SMC User Manual

OPERATING ELEMENTS 28

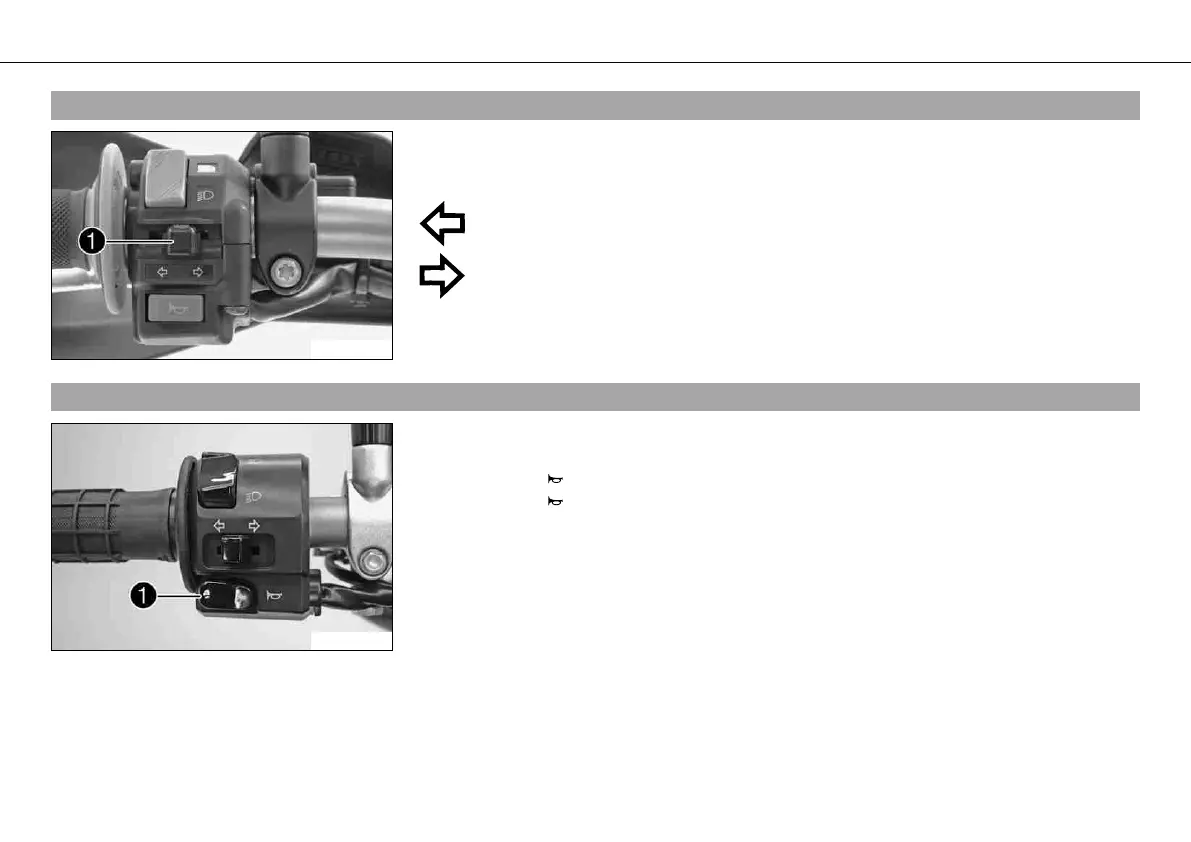

5.7Flasher switch
100223-10
The flasher switch is fitted on the left side of the handlebar.
Possible states
Flasher light off
Flasher light, left, on –Flasher switch pressed to the right. The flasher
switch returns automatically to the central position after use.
Flasher light, right, on –Flasher switch pressed to the right. The flasher
switch returns automatically to the central position after use.
To switch off the flasher light, press the flasher switch towards the switch case.
5.8Horn button
500021-11
The horn button is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed –The horn is operated in this position.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
