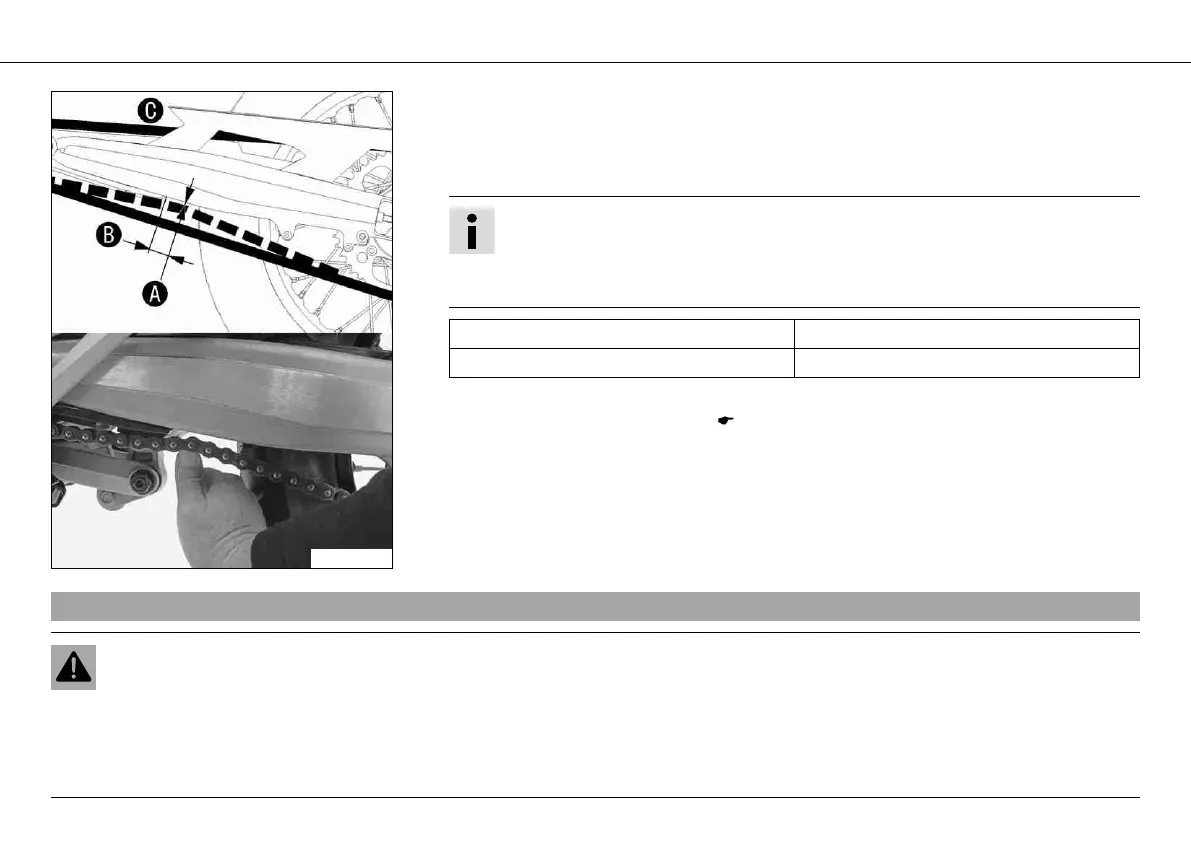

MAINTENANCE WORK ON CHASSIS AND ENGINE 79

100249-10

– Lean the motorcycle on the side stand.

– Shift gear to neutral.

– Push the chain upward at a distance from the chain sliding guard and determine the

chain tension.

Info

The upper chain section must be taut.

Chain wear is not always even, so you should repeat this measurement at differ-

ent chain positions.

Chain tension 5mm (0.2in)

Distance to chain sliding guard 30mm (1.18in)

» If the chain tension does not meet specifications:

– Adjust the chain tension. ( S. 79)

9.24Adjusting chain tension

Warning

Danger of accidents Danger caused by incorrect chain tension.

– If the chain tension is too high, the components of the secondary power train (chain, engine sprocket, rear sprocket, bearings

in transmission and rear wheel) are under additional load. Apart from premature wear, in extreme cases the chain can rupture

or the countershaft of the transmission can break. On the other hand, if the chain is loose, it can fall off the engine sprocket or

the rear sprocket and block the rear wheel or damage the engine. Check for correct chain tension and adjust if necessary.

Questions and Answers:

T
Tyler PowellAug 21, 2025
Why KTM 690 SMC engine does not turn when starter button is pressed?
- J
  Jenna CisnerosAug 21, 2025
  The engine may not turn when the starter button is pressed due to several reasons: it could be an operating error, the battery might be discharged (in which case, recharge the battery and check for the cause of discharging), a fuse (1, 2, 3, or 4) could be blown (then change the fuses), the main fuse might be burned out (then change the main fuse), there may be a defect in the ignition/steering lock or emergency OFF switch (then have it checked), a defect in the safety start system (then have the safety start system checked), or there is no ground connection present (then check the ground connection).
A
Amanda EscobarAug 23, 2025
What to do if KTM 690 SMC Motorcycle engine dies during the journey?

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
