MAINTENANCE WORK ON CHASSIS AND ENGINE 126
– Check the flasher function.

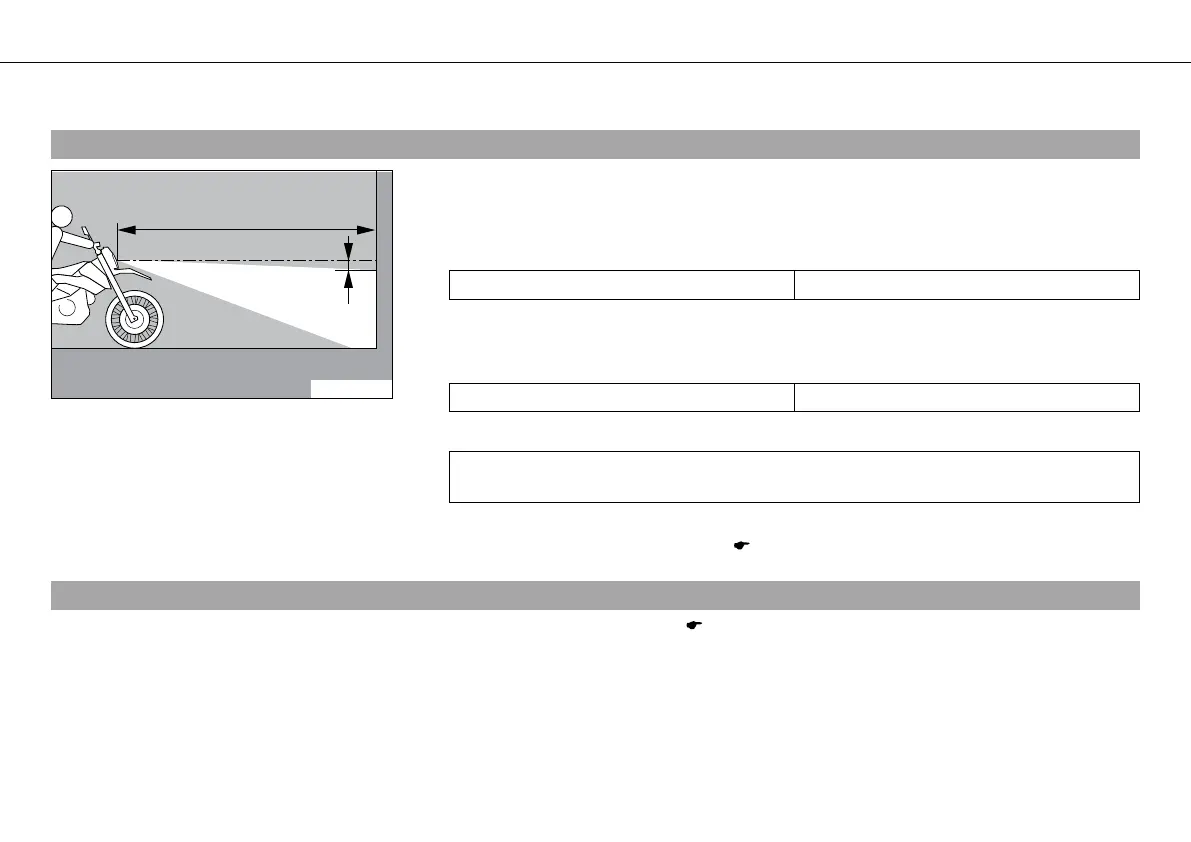

9.65Checking headlamp setting
400408-10
– On a light-colored wall with a horizontal area in front of it, make a mark as high as the
center of the low beam headlight.
– Make another mark at a distance of under the first mark.
Guideline
Distance 5cm (2in)
– Stand the motorcycle at a distance of in front of the wall and switch on the low
beam.
Guideline
Distance 5m (16ft)
– Check the headlamp setting.
The boundary between light and dark must be exactly on the lower mark for a motor-
cycle with driver.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( S. 126)
9.66Adjusting the headlight range
– Check the headlamp setting. ( S. 126)

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
