MAINTENANCE WORK ON CHASSIS AND ENGINE 147

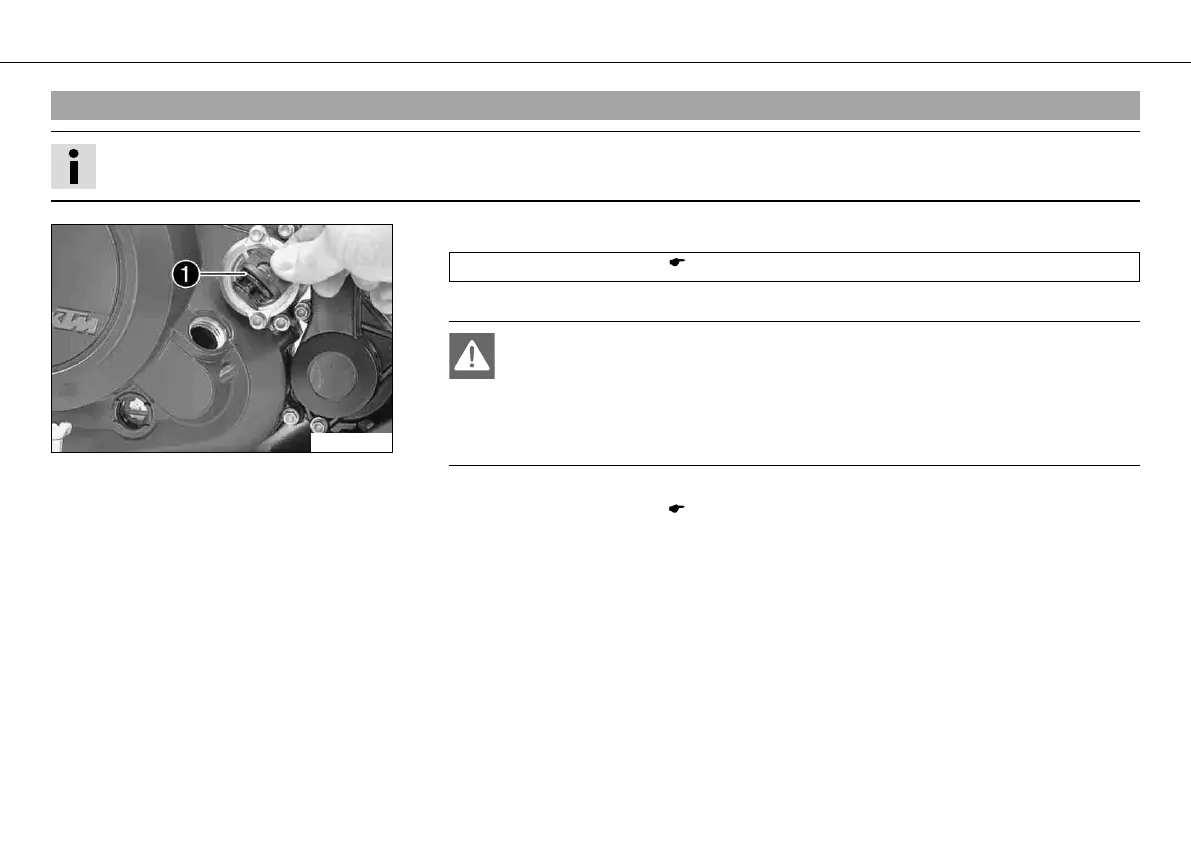

9.85Topping up engine oil
Info
Too little engine oil or poor-quality engine oil results in premature wear to the engine.
100209-10
– Remove filler plug with O-ring from the clutch cover and add engine oil.
Engine oil (SAE 10W/60) ( S. 174)
– Refit plug with O-ring and tighten it.
Danger
Danger of poisoning Exhaust gases are poisonous and can result in
unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in a closed space.
– Start the engine and check that it is oil-tight.
– Check the engine oil level. ( S. 140)

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
