MAINTENANCE WORK ON CHASSIS AND ENGINE 72
Warning
Danger of accidentsReduced braking due to oil or grease on the brake discs.
Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
Clean and oil the dust boots and inner fork tube of both fork legs.
Universal oil spray ( S. 177)
Press the dust boots back into their normal position.
Remove excess oil.
Install the fork protector. ( S. 73)
Remove the motorcycle from the work stand.

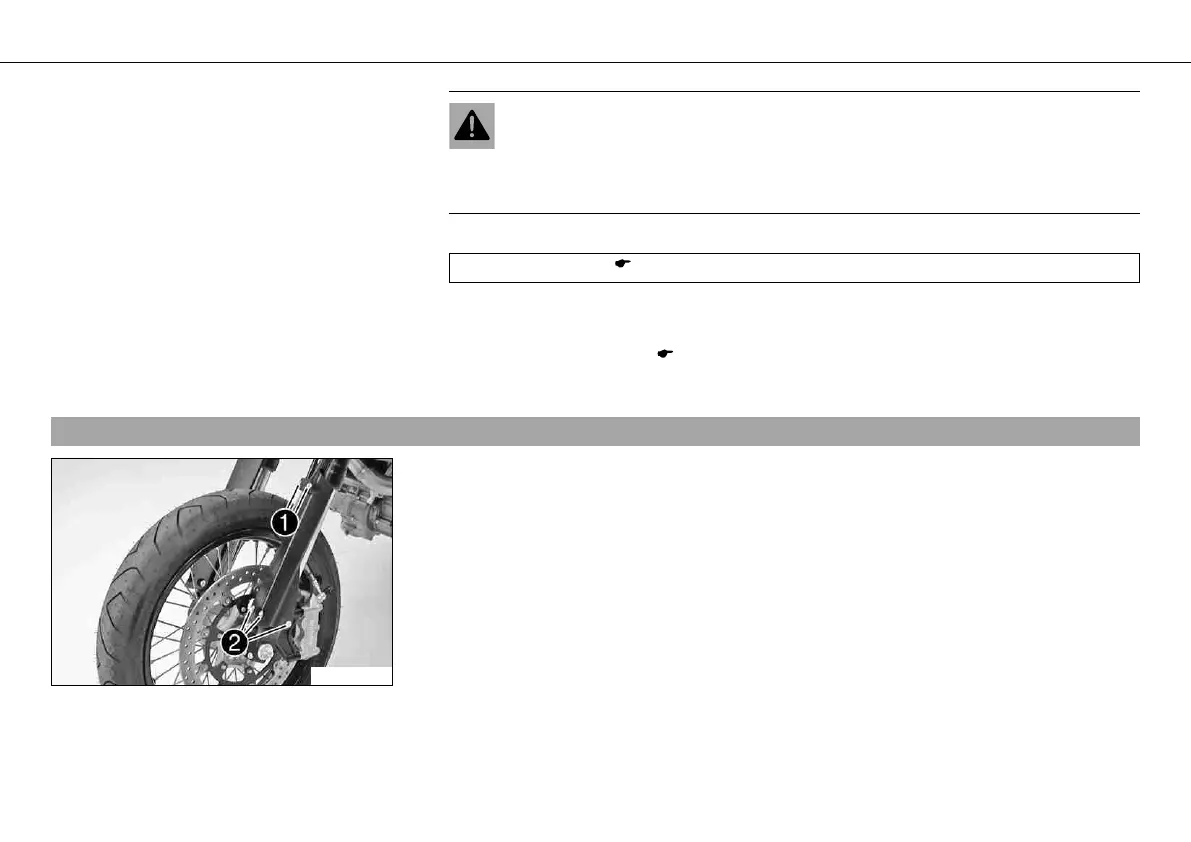

9.14Removing the fork protector
600633-11
Remove screws and take off clamp.
Remove screws on left fork leg. Remove the fork protector.
Remove the screws on the right fork leg. Remove the fork protector.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KTM 690 SMC and is the answer not in the manual?

KTM 690 SMC Specifications

General IconGeneral
Bore x Stroke105 mm x 80 mm
StarterElectric starter
Transmission6-speed
LubricationForced oil lubrication with 2 oil pumps
ClutchAPTC slipper clutch, hydraulically actuated
FrameChromium-Molybdenum steel trellis frame, powder coated
Tires Front120/70 ZR 17
Tires Rear160/60 ZR 17
Steering Head Angle63.5°
Seat Height890 mm
Engine Type1-cylinder, 4-stroke engine
Fuel SystemElectronic fuel injection
CoolingLiquid cooled
Front BrakeBrembo four piston radial caliper, 320 mm disc
Rear BrakeBrembo single piston caliper, 240 mm disc
Wheels Front3.50 x 17"
Wheels Rear5.00 x 17"
Fuel Capacity13.5 l
Power55 kW (74 hp)
Wheelbase1, 480 mm ± 15 mm
