KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 124
600612-10

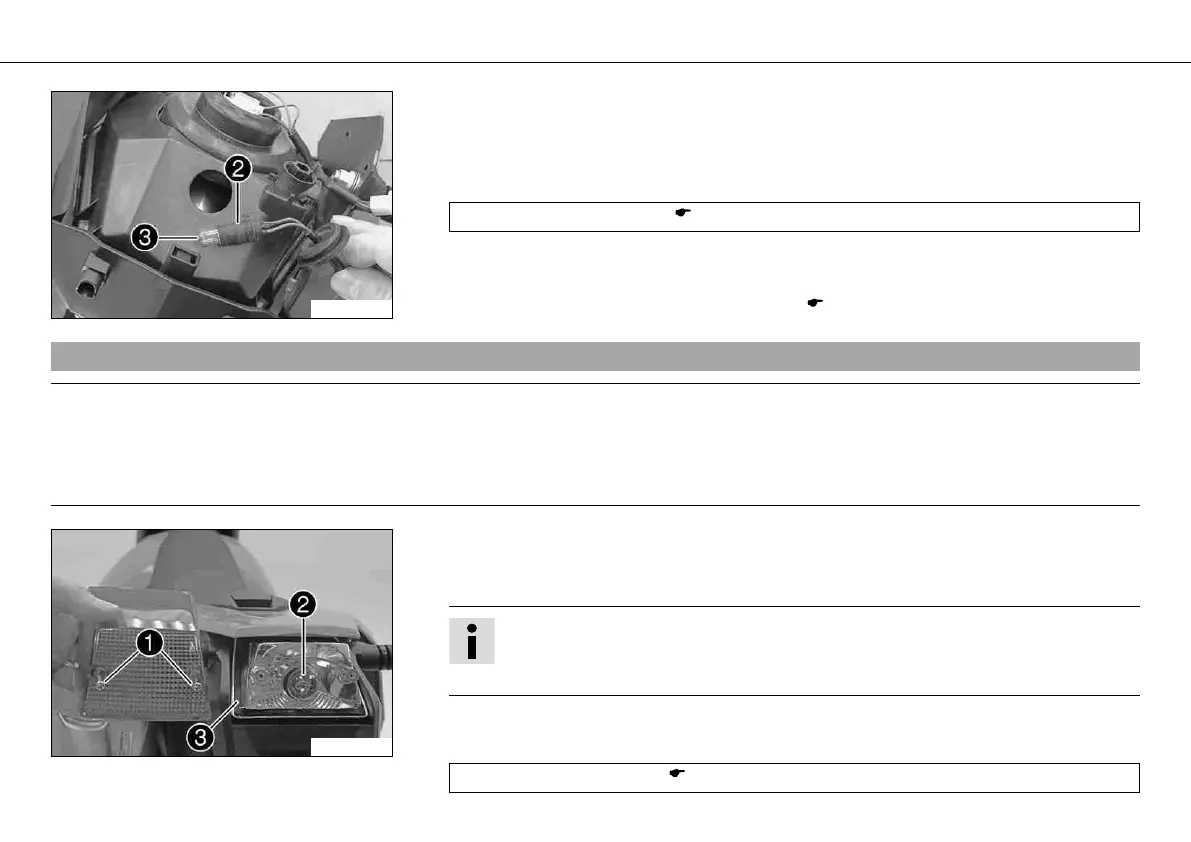

– Pull bulb socket out of the reflector.
– Pull parking light bulb out of the bulb socket.
– Check parts for damage and wear. Replace damaged or worn parts.
– Insert a new parking light bulb into the bulb socket.
Parking light(W2,1x9,5d) ( S. 165)
– Insert the bulb socket into the reflector.
– Insert the rubber cap.
– Refit the headlight mask with the headlight. ( S. 121)
9.63Changing the rear lamp
Note
Damage to reflector Keep the glass of the bulb free of grease.
– Clean the glass bulb with a clean cloth before mounting. Any grease on the glass will evaporate by the heat and be deposited on the
reflector.
100331-10
– Remove screws and take off the lens.
– Press the bulb carefully into the holder, turn it about 30° counterclockwise and
remove it from the holder.
Info
Do not touch the reflector with your fingers and try to avoid contact with oil or
grease.
– Check parts for damage and wear. Replace damaged or worn parts.
– Insert a new bulb and turn it clockwise as far as possible.
Brake / tail light(BA15d) ( S. 165)

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
