KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 71
100248-10

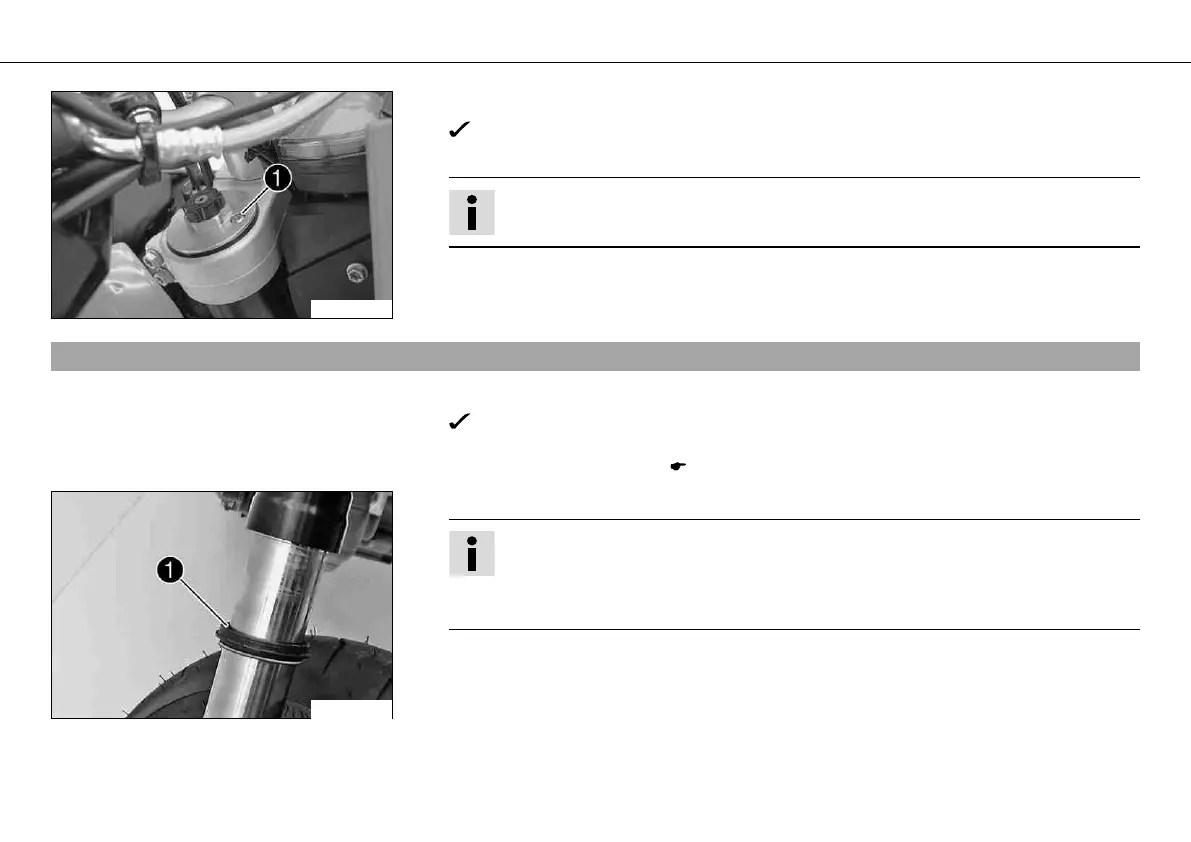

– Remove bleeder screws briefly.
Any excess pressure escapes from the interior of the fork.
– Mount and tighten bleeder screws.
Info
Carry out this action on both fork legs.
9.13Cleaning dust boots of fork legs
– Jack up the motorcycle and secure it against falling over.
The front wheel is not in contact with the ground and there is no weight on the fork
legs.
– Remove the fork protector. ( S. 72)
600634-10
– Push dust boots of both fork legs downwards.
Info
The dust boots should remove dust and coarse dirt particles from the fork tubes.
Over time, dirt can penetrate behind the dust boots. If this dirt is not removed,
the oil seals behind can start to leak.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
