MAINTENANCE WORK ON CHASSIS AND ENGINE 114
100151-10

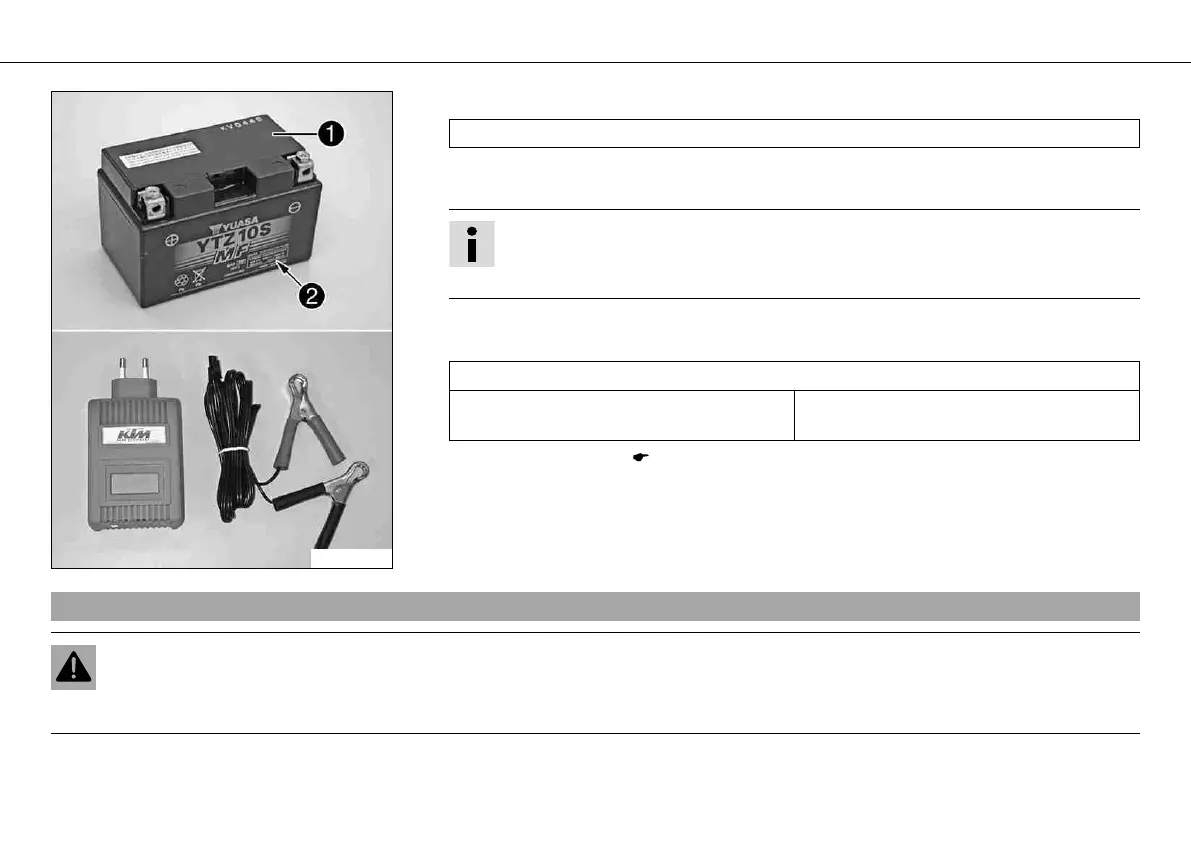

– Connect the battery charger to the battery. Switch on the battery charger.
Battery charger(58429074000)
You can also use the battery charger to test rest potential and start potential of the bat-
tery, and to test the generator. With this device, you cannot overcharge the battery.
Info
Never remove the lid.
Charge the battery according to the instructions on the battery casing.
– After charging, switch off and disconnect the battery charger.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use.
3months
–
Install the battery.x ( S. 112)
9.56Changing the main fuse
Warning
Fire hazard The electrical system can be overloaded by the use of incorrect fuses.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
