KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 85

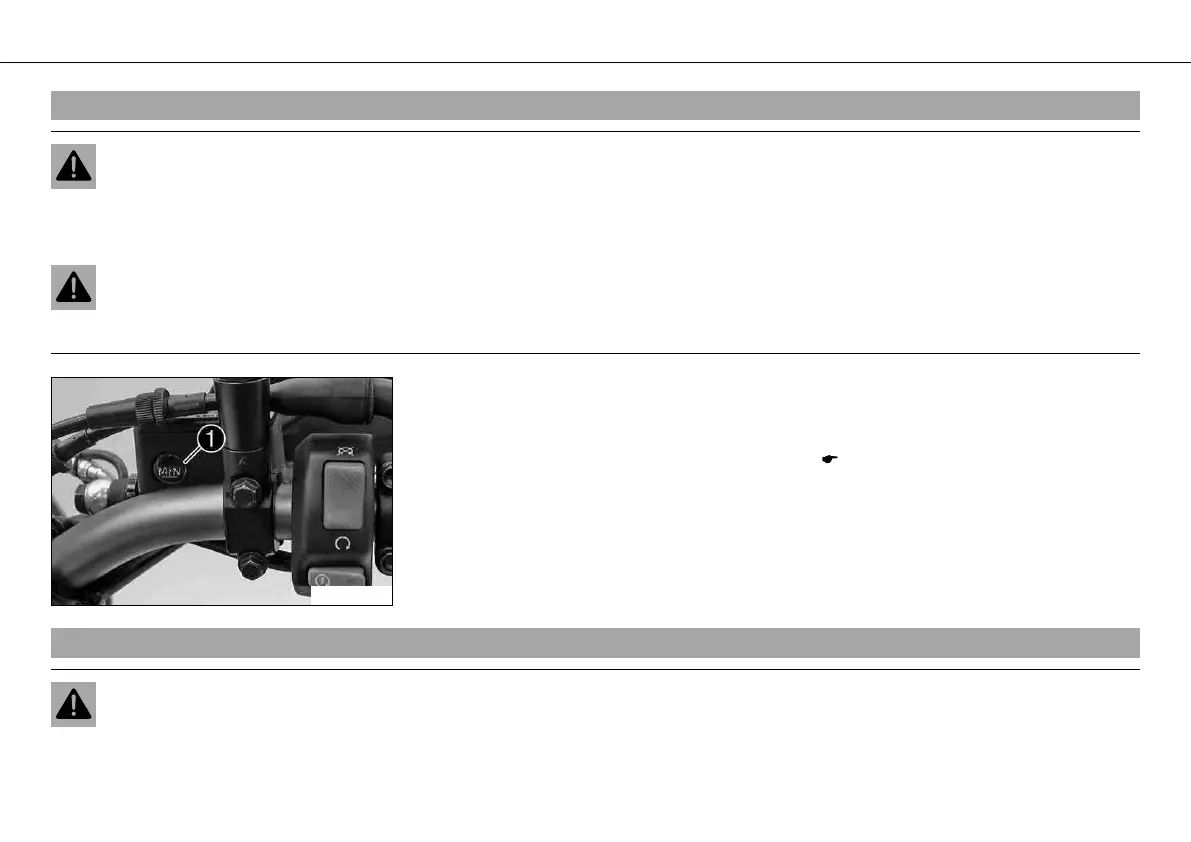

9.30Checking front brake fluid level
Warning
Danger of accidents Brake system failure.
– MINIf the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Have the brake system checked in an authorized KTM workshop, and do not ride any further.
Warning
Danger of accidents Reduced braking due to old brake fluid.
– Have the front and rear brake fluid replaced according to the service plan in an authorized KTM workshop.
600603-10
– The brake fluid level must not fall below the center of the level viewer when the
brake fluid reservoir is vertical.
» If the brake fluid level is lower than the center of the level viewer:
–
Add brake fluid for the front brake.x ( S. 85)
9.31Adding brake fluid for front brakex
Warning
Danger of accidents Brake system failure.
– MINIf the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Have the brake system checked in an authorized KTM workshop, and do not ride any further.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
