KTM 690 SMC User Manual

OPERATING ELEMENTS 29

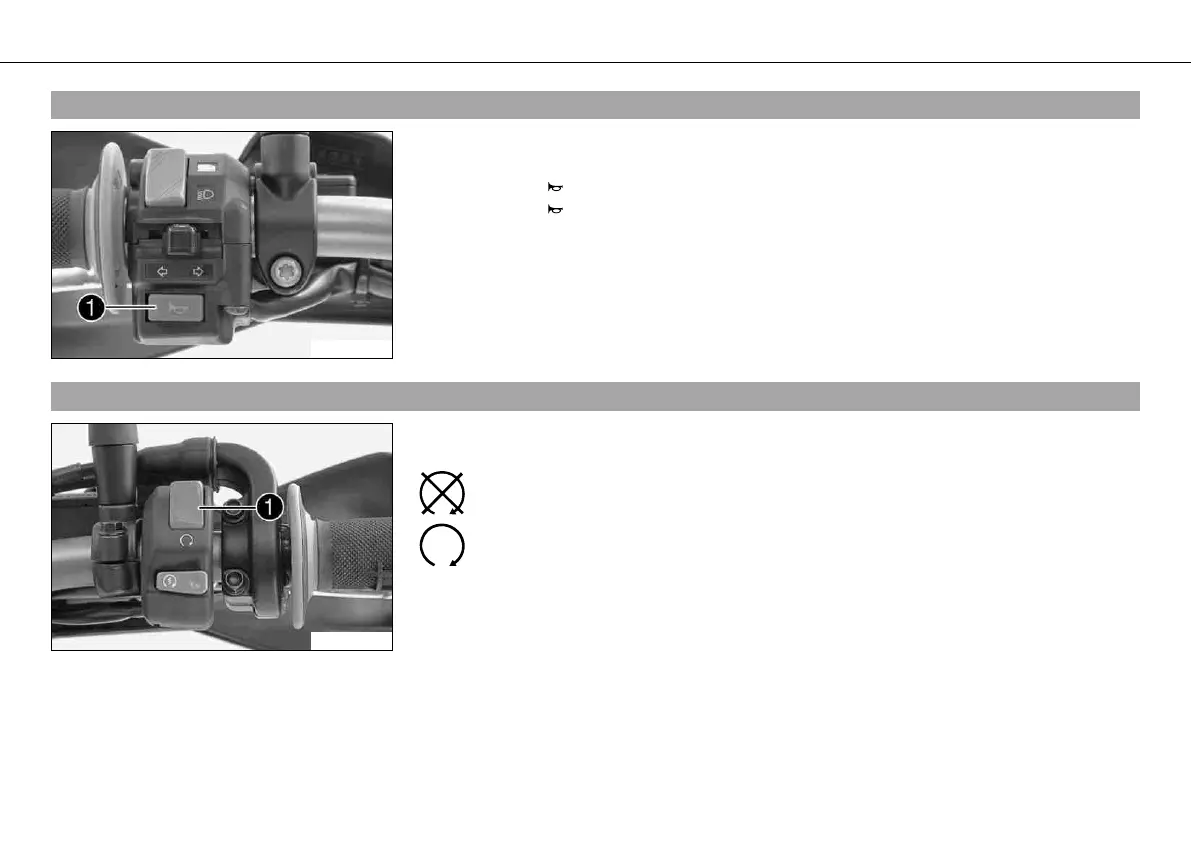

5.9Horn button
100224-10
The horn button is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed –The horn is operated in this position.
5.10Emergency OFF switch
100225-10
The emergency OFF switch is fitted on the left side of the handlebar.
Possible states
Emergency OFF switch off –In this position, the ignition circuit is inter-
rupted, a running engine stops, and the engine cannot be started.
Emergency OFF switch on –This position is necessary for operation as the
ignition circuit is closed.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
