MAINTENANCE WORK ON CHASSIS AND ENGINE 75
– Mount and tighten screw.
Guideline
Screw, steering stem M8 20Nm
(14.8lbfft)
Loctite
®
243™
–
Check play of steering head bearing.x ( S. 73)
– Remove the motorcycle from the work stand.

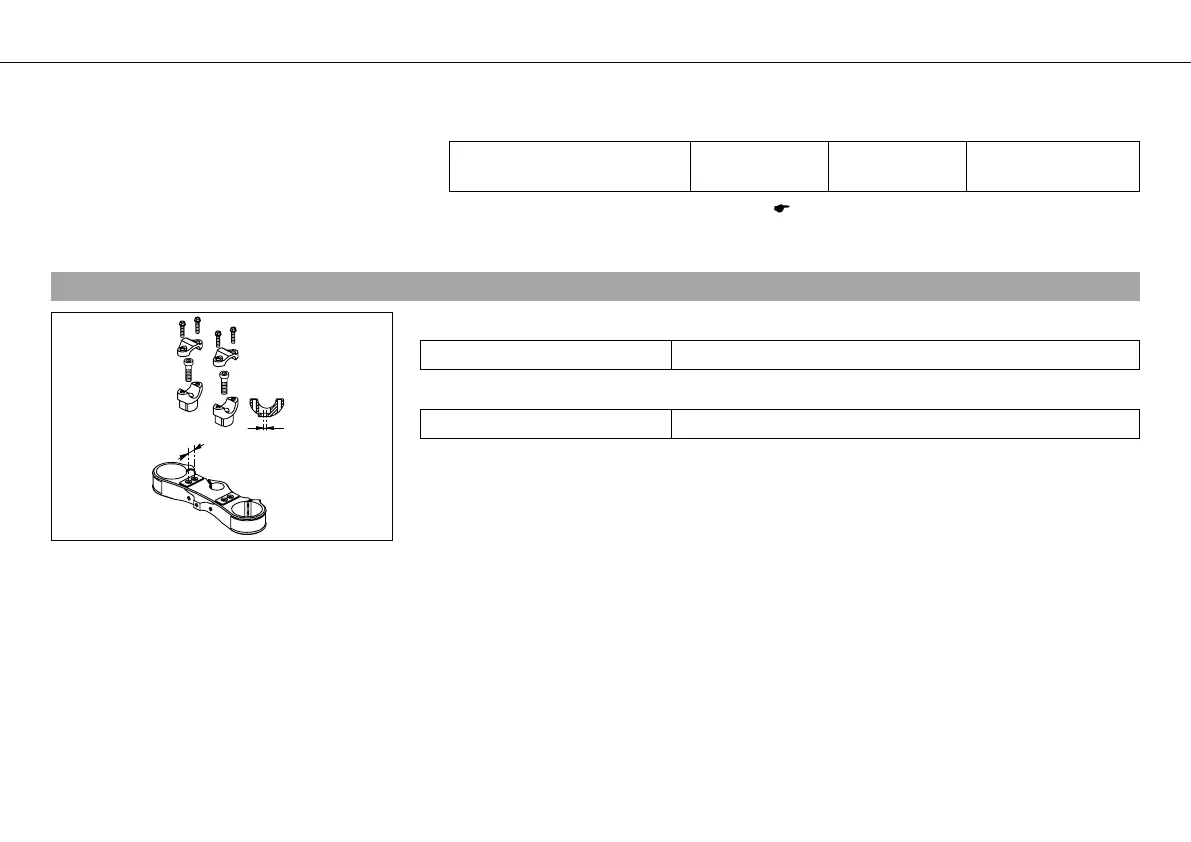

9.18Handlebar position
400271-11
On the upper triple clamp, there are 2 holes at a distance to each other.
Distance between holes 15mm (0.59in)
The holes on the handlebar support are placed at a distance from the center.
Distance between holes 3.5mm (0.138in)
The handlebar can be mounted in 4 different positions. In this way, the handlebar can be
installed in the position most comfortable for the rider.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
