KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 64

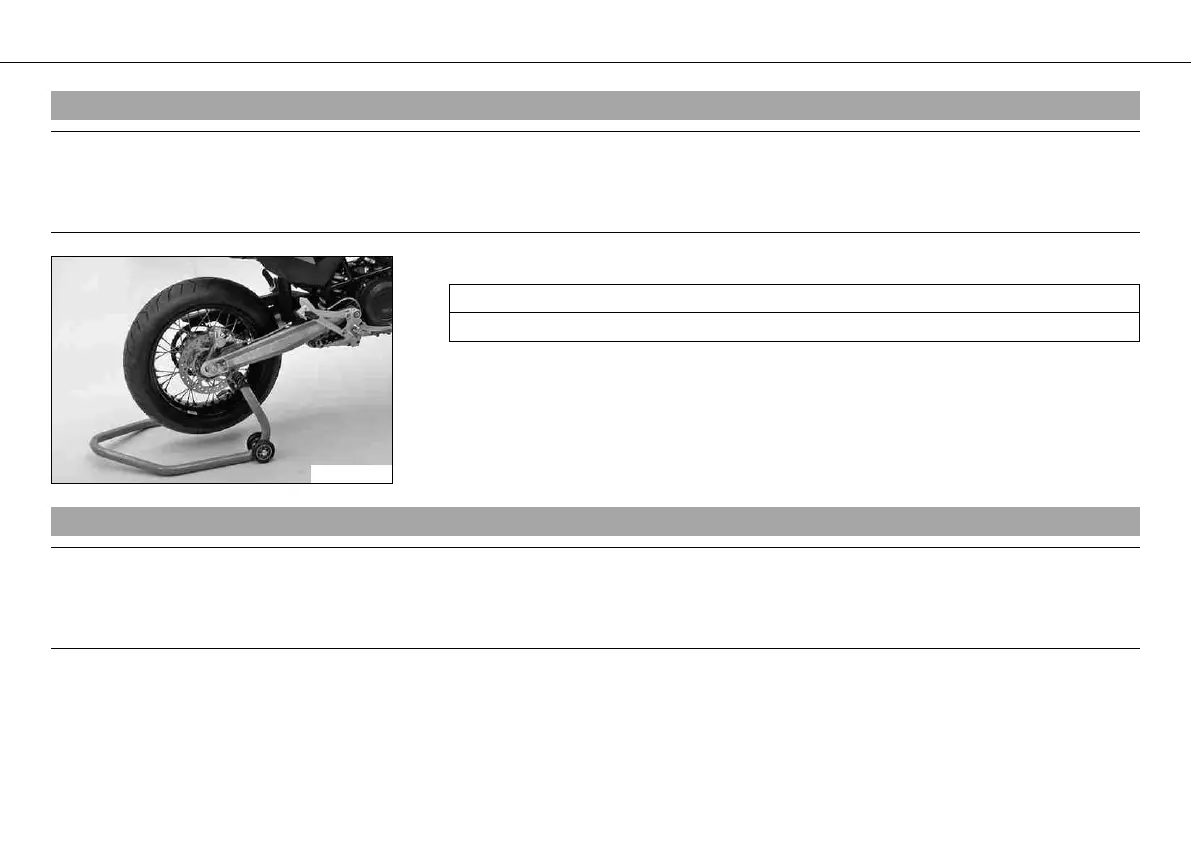

9.3Jacking up rear of motorcycle
Note
Danger of damage Danger of damage by the vehicle running away or falling over.
– Always place the vehicle on a firm and even surface.
600492-01
– Insert the work stand adapter in the work stand and screw it into the link forks.
Work stand adapter (61029055110)
Work stand rear (61029055100)
– Stand the motorcycle upright, align the work stand to the rear, and jack up the motorcy-
cle.
9.4Take the rear from the work stand.
Note
Danger of damage Danger of damage by the vehicle running away or falling over.
– Always place the vehicle on a firm and even surface.
– Secure the motorcycle against falling over.
– Remove the work stand from the rear and lean the vehicle on the side stand.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
