KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 104
600627-01

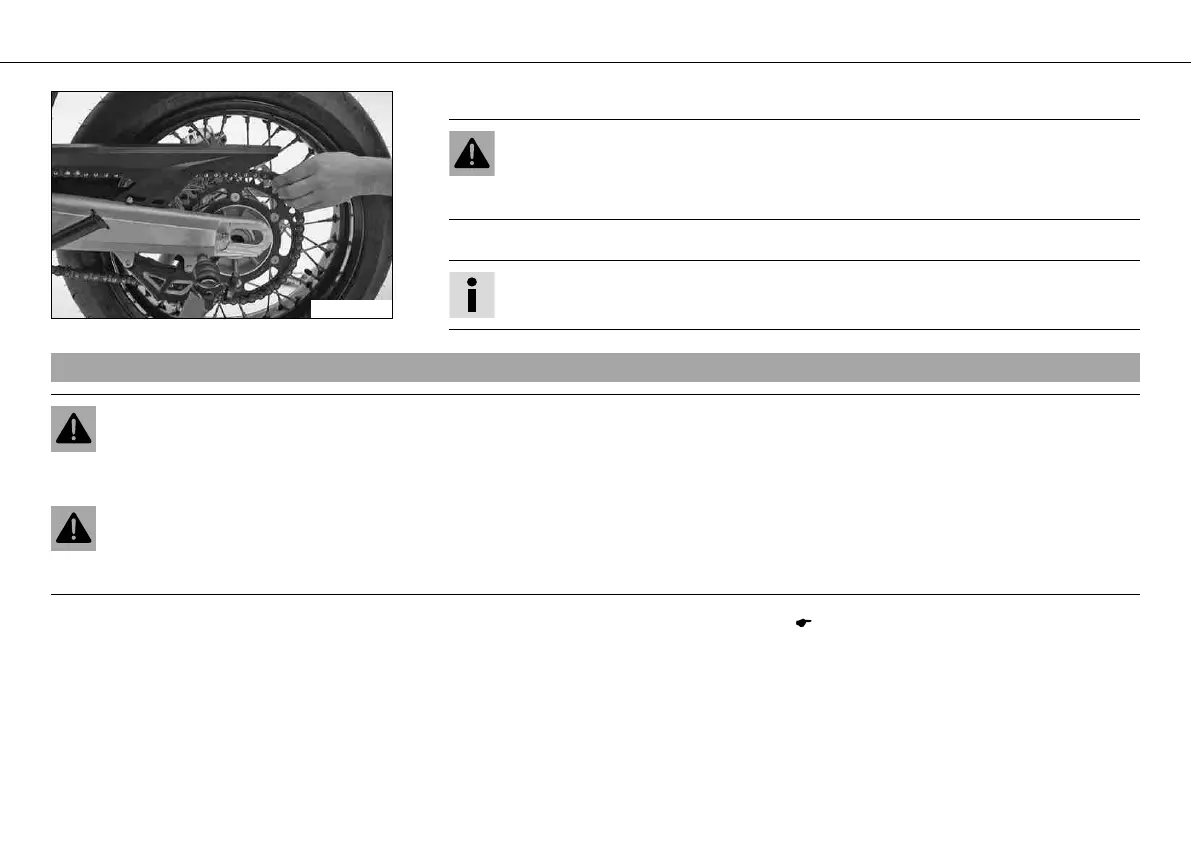

– Push the rear wheel forwards as far as possible and take the chain off the rear sprocket.
Warning
Danger of accidents Reduced braking due to damaged brake discs.
– Always lay the wheel down in such a way that the brake disc is not damaged.
– Take the rear wheel out of the swing arm.
Info
Do not operate the foot brake when the rear wheel is removed.
9.46Installing the rear wheelx
Warning
Danger of accidents Reduced braking due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents No braking effect when operating the rear brake.
– After installing the rear wheel, always operate the footbrake until the pressure point is reached.
–
Checking the rear hub rubber dampers.x ( S. 106)

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
