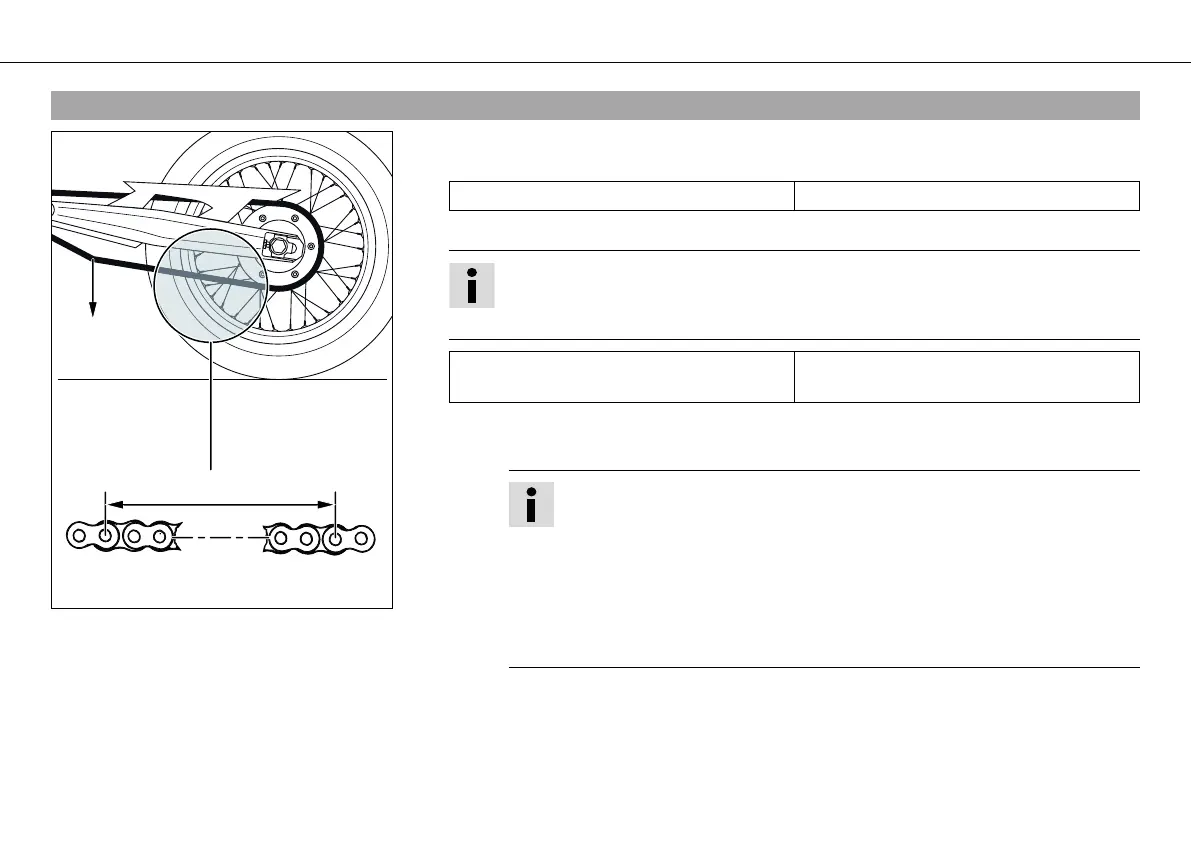

MAINTENANCE WORK ON CHASSIS AND ENGINE 82

9.26Checking chain wear

400409-10

– Shift into neutral, and pull the lower chain section with the specified weight.

Guideline

Weight of chain wear measurement 15kg (33lb.)

– Measure distance of 18 chain segments of the lower chain section.

Info

Chain wear is not always even, so you should repeat this measurement at differ-

ent chain positions.

Maximum distance at the longest sec-

tion of the chain

272mm (10.71in)

» If distance is greater than the specified measurement:

– Have the chain changed.

Info

When the chain is replaced, the rear sprocket and engine sprocket

should be replaced at the same time.

A new chain will wear faster on an old, worn rear sprocket or engine

sprocket.

For safety reasons, the chain has no chain joint. Always have the chain

changed in an authorized KTM workshop, where they have the necessary

special tools.

Questions and Answers:

T
Tyler PowellAug 21, 2025
Why KTM 690 SMC engine does not turn when starter button is pressed?
- J
  Jenna CisnerosAug 21, 2025
  The engine may not turn when the starter button is pressed due to several reasons: it could be an operating error, the battery might be discharged (in which case, recharge the battery and check for the cause of discharging), a fuse (1, 2, 3, or 4) could be blown (then change the fuses), the main fuse might be burned out (then change the main fuse), there may be a defect in the ignition/steering lock or emergency OFF switch (then have it checked), a defect in the safety start system (then have the safety start system checked), or there is no ground connection present (then check the ground connection).
A
Amanda EscobarAug 23, 2025
What to do if KTM 690 SMC Motorcycle engine dies during the journey?
- U
  uwilliamsonAug 23, 2025
  If the engine dies during a journey, it could be due to a lack of fuel (refuel), a blown fuse (1, 2, or 4, so change the fuses), a bent engine vent hose (route the vent hose without bends or change it if necessary), or an engine oil level that is too high (check the engine oil level).

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
