KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 87

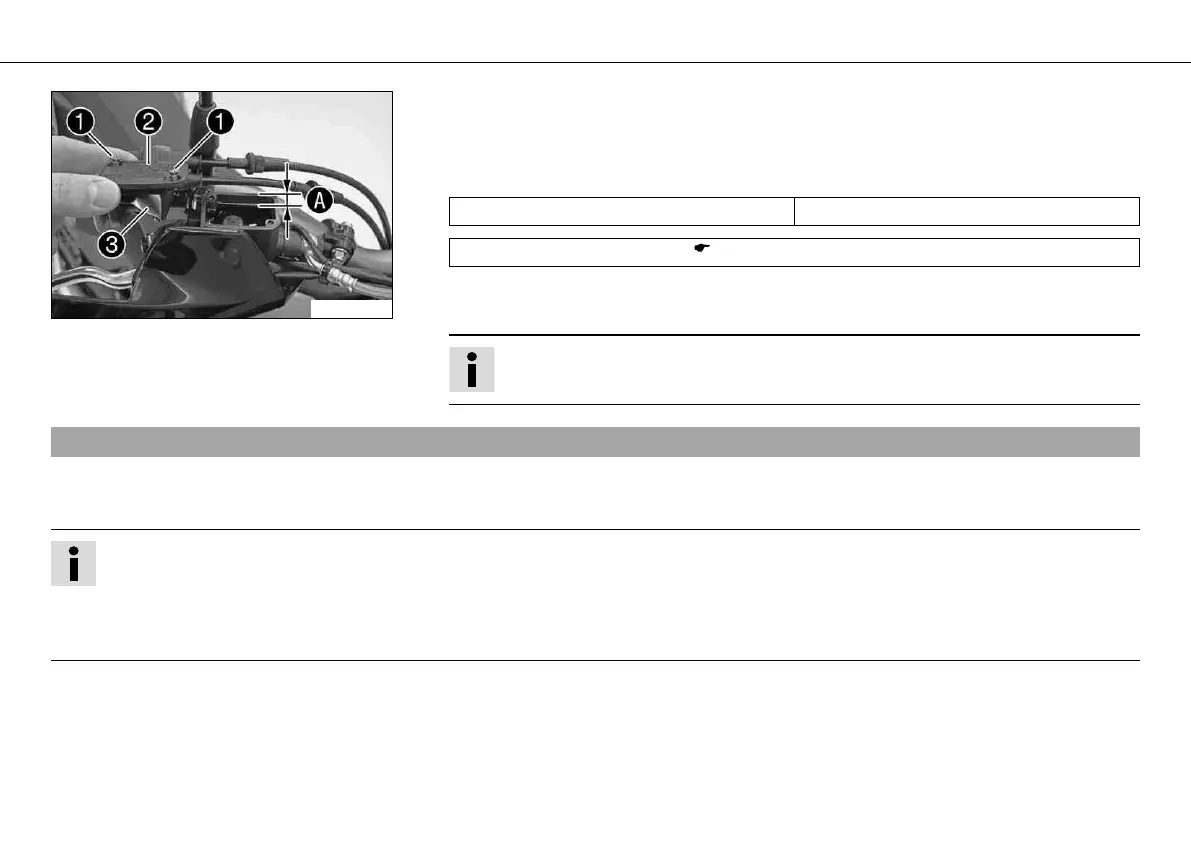

100254-10
– Remove screws.
– Remove cover with membrane.
– Add brake fluid to level.
Guideline
Measurement of 5mm (0.2in)
Brake fluid DOT4/DOT5.1 ( S. 173)
– Check parts for damage and wear. Replace damaged or worn parts.
– Position the cover with the membrane. Mount and tighten screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
9.32Brake linings
The brake linings fitted by KTM were tested over long periods and ensure optimal braking properties. The type names of brake pads are
entered in the homologation documents.
Info
Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construction and
friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM brake linings. If
brake linings are used that differ from the originals, there is no guarantee that they comply with the original license. The vehicle
no longer corresponds to the condition at delivery, and the warranty is no longer valid.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
