KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 83

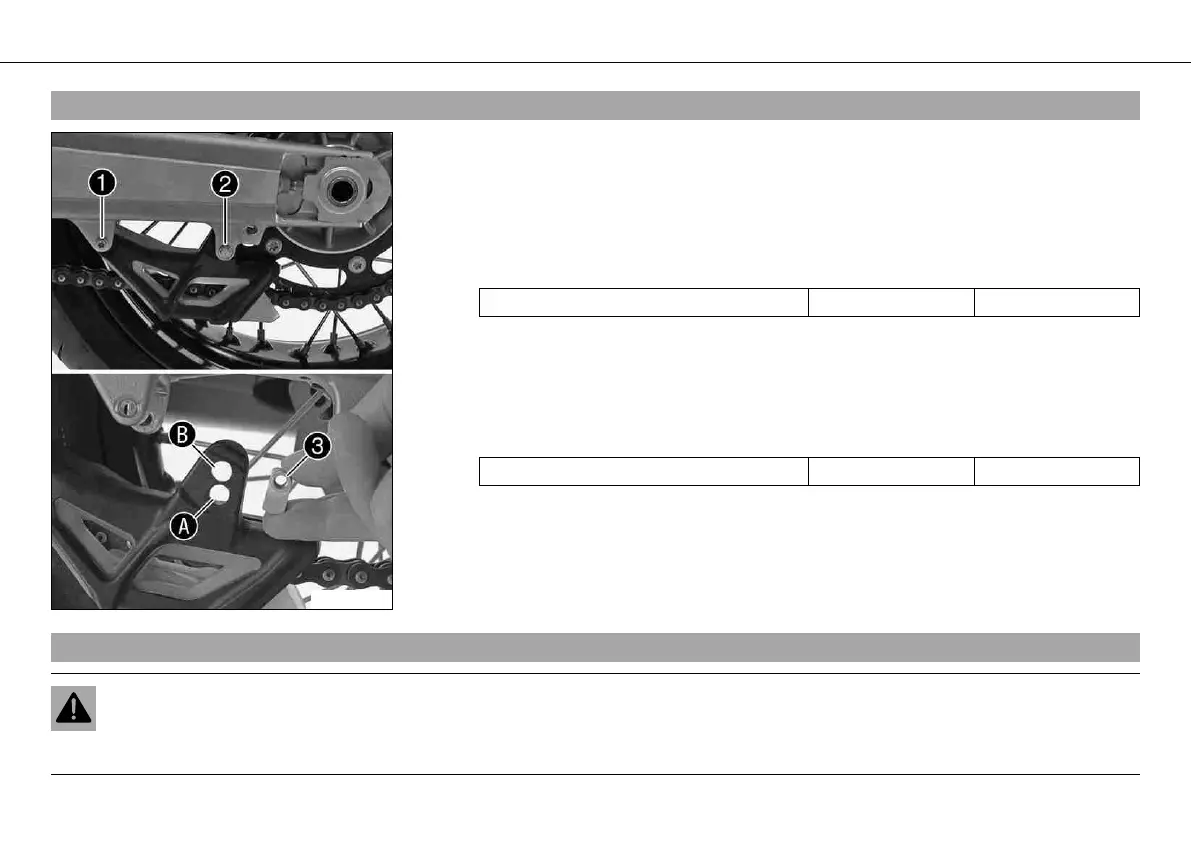

9.27Adjusting chain guidex
600635-10
– Remove screws and. Take off the chain guide.
Conditions
Number of teeth: ≤44teeth
– Insert nut in hole. Position the chain guide.
– Mount and tighten screws and.
Guideline
Remaining screws, chassis M6 10Nm (7.4lbfft)
Conditions
Number of teeth: ≥45teeth
– Insert nut in hole. Position the chain guide.
– Mount and tighten screws and.
Guideline
Remaining screws, chassis M6 10Nm (7.4lbfft)
9.28Checking brake discs
Warning
Danger of accidents Reduced braking due to worn brake discs.
– Worn brake discs should be replaced immediately in an authorized KTM workshop.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
