KTM 690 SMC User Manual

OPERATING ELEMENTS 26

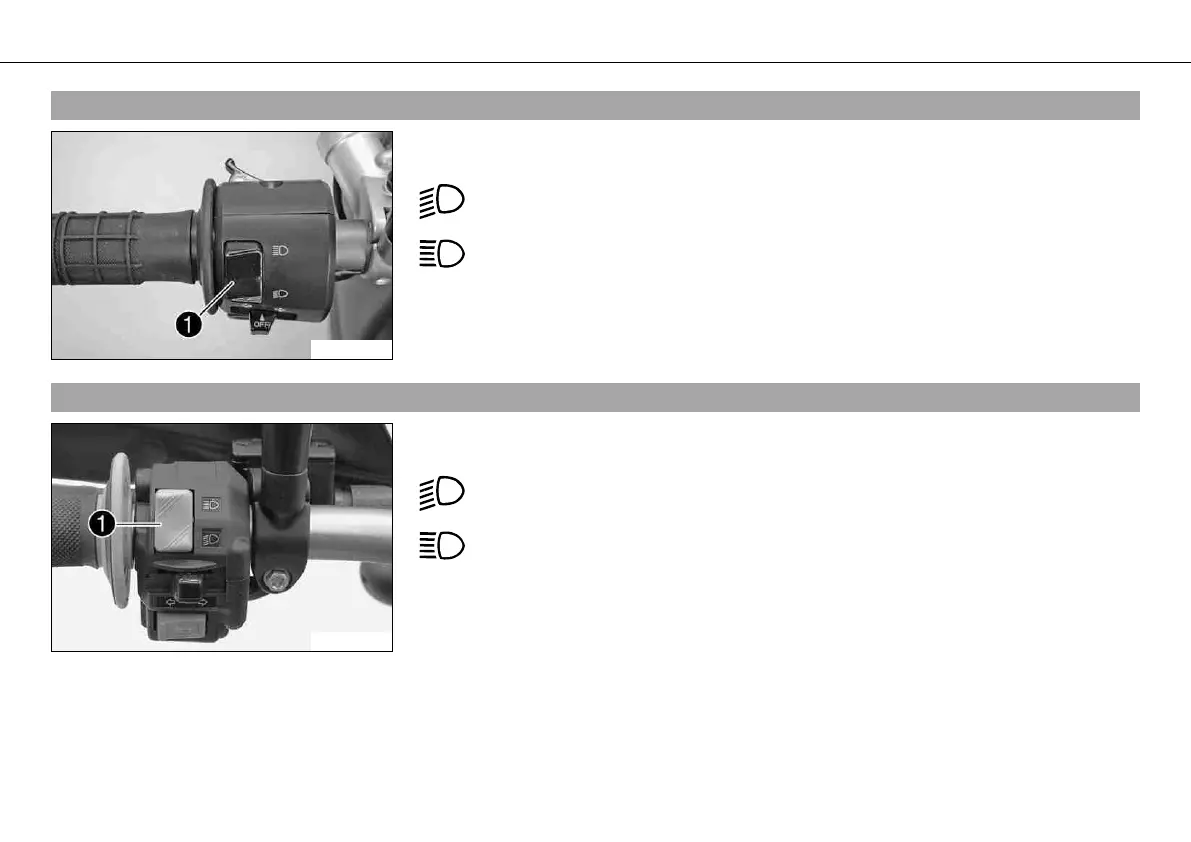

5.3Light switch
500020-01
The light switch is fitted on the left side of the handlebar.
Possible states
Low beam on –Light switch is turned downwards. In this position, the low
beam and tail light are switched on.
High beam on –Light switch is turned upwards. In this position, the high
beam and the tail light are switched on.
5.4Light switch
100222-10
The light switch is fitted on the left side of the handlebar.
Possible states
Low beam on –Light switch is turned downwards. In this position, the low
beam and tail light are switched on.
High beam on –Light switch is turned upwards. In this position, the high
beam and the tail light are switched on.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
