MAINTENANCE WORK ON CHASSIS AND ENGINE 110
– Mount dust cap.

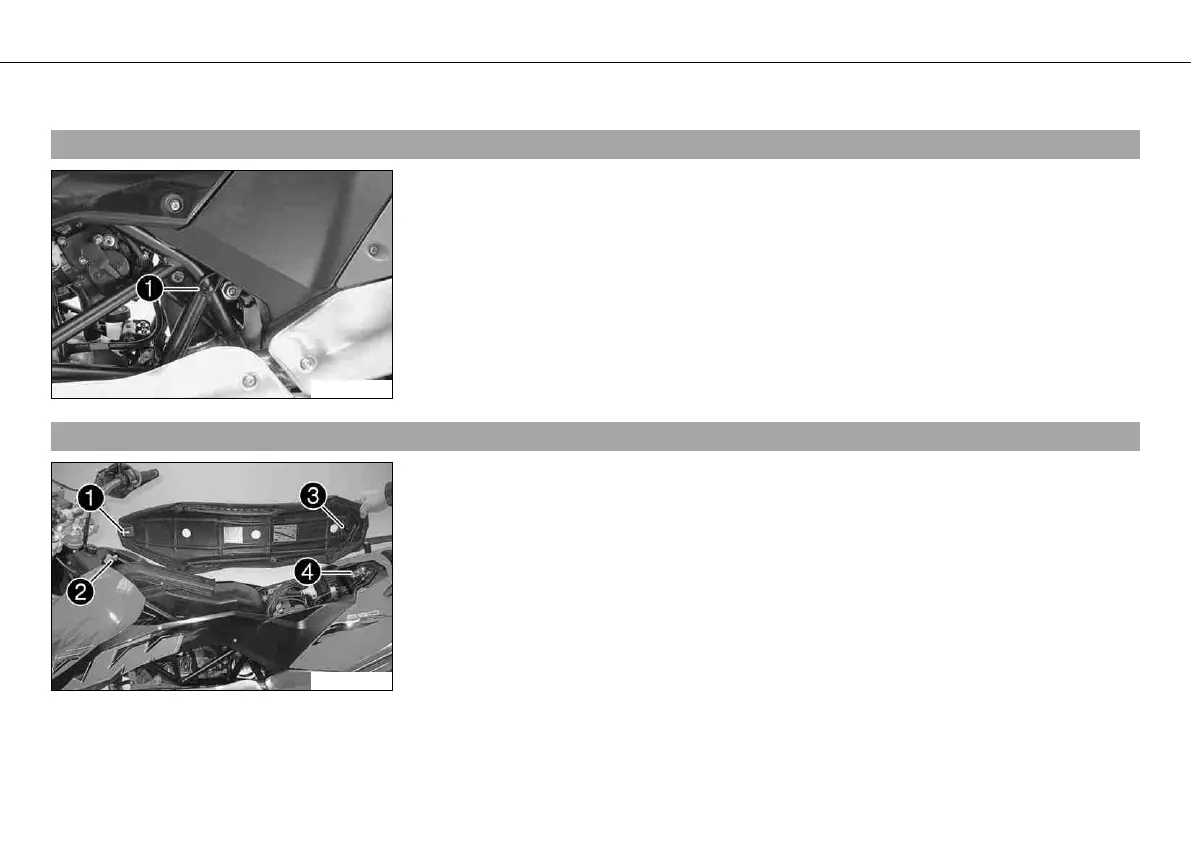

9.51Removing the seat
100230-10
– Pull on strap and raise the rear of the seat at the same time.
– Pull back the seat and lift it off.
9.52Mounting the seat
100276-10
– Hook slot of the seat onto screw, press the rear downward and at the same time
push it forward.
– Push locking pin into lock housing and push the back of the seat down until the
locking pin locks in place with an audible click.
– Finally, check that the seat is correctly mounted.
