KTM 690 SMC User Manual

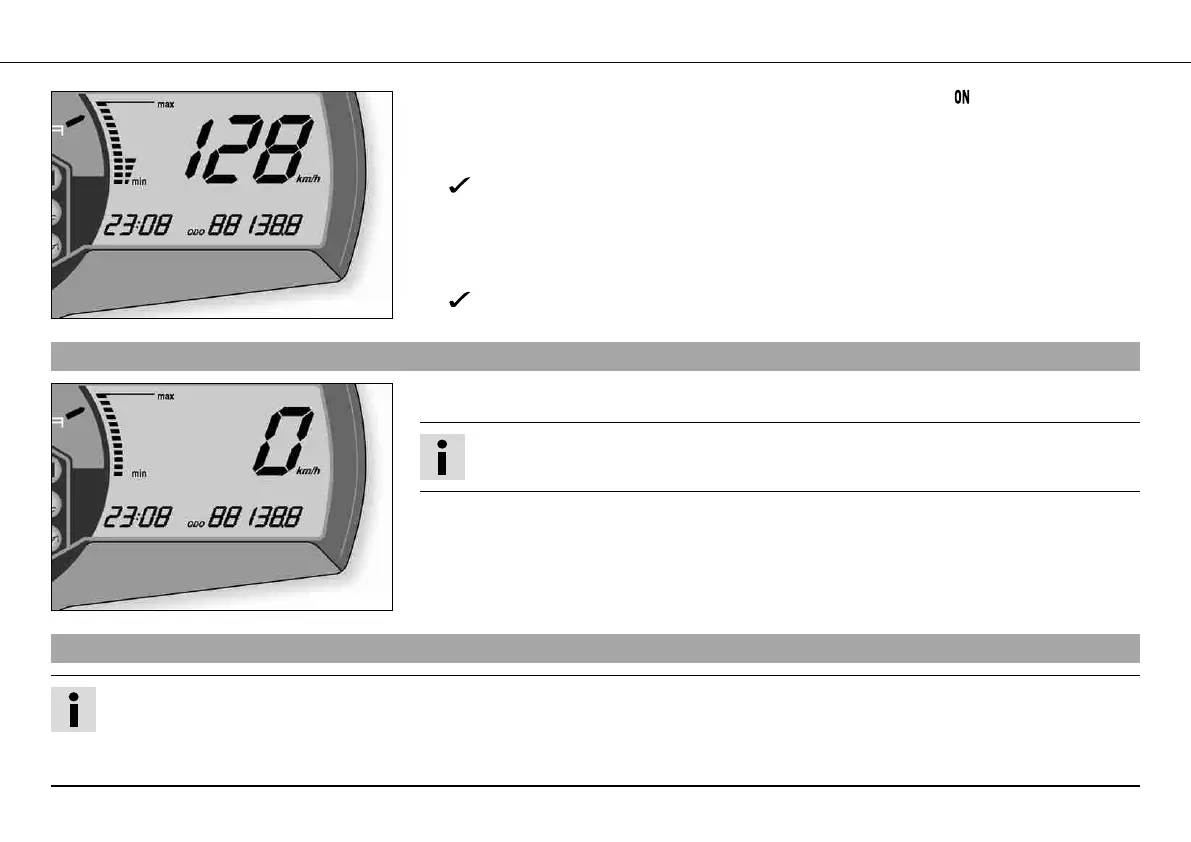

OPERATING ELEMENTS 36
700115-10
– Switch on the ignition by turning the ignition key in the position .
– Press theMODEbutton several times until theODO display mode is active.
– Keep theMODEbutton and theSETbutton pressed simultaneously.
The time begins to flash.
– Press theMODEbutton to adjust the hour.
– Press theSETbutton to adjust the minute.
– Keep theMODEbutton and theSETbutton pressed simultaneously.
The time is set.
5.22Combination instrument -ODO display
700120-01
InODO mode, the total distance covered is shown in kilometers or miles.
Info
This value remains intact even if the battery is disconnected and/or the fuse blows.
5.23Combination instrument - setting/resettingTRIP1 display
Info
The tripmasterTRIP1 operates constantly and counts up to999.9.
You can use the tripmaster to measure trips or the distance between refuelling stops. After reaching 999.9, the tripmaster begins
again at 0.0.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
