KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 97

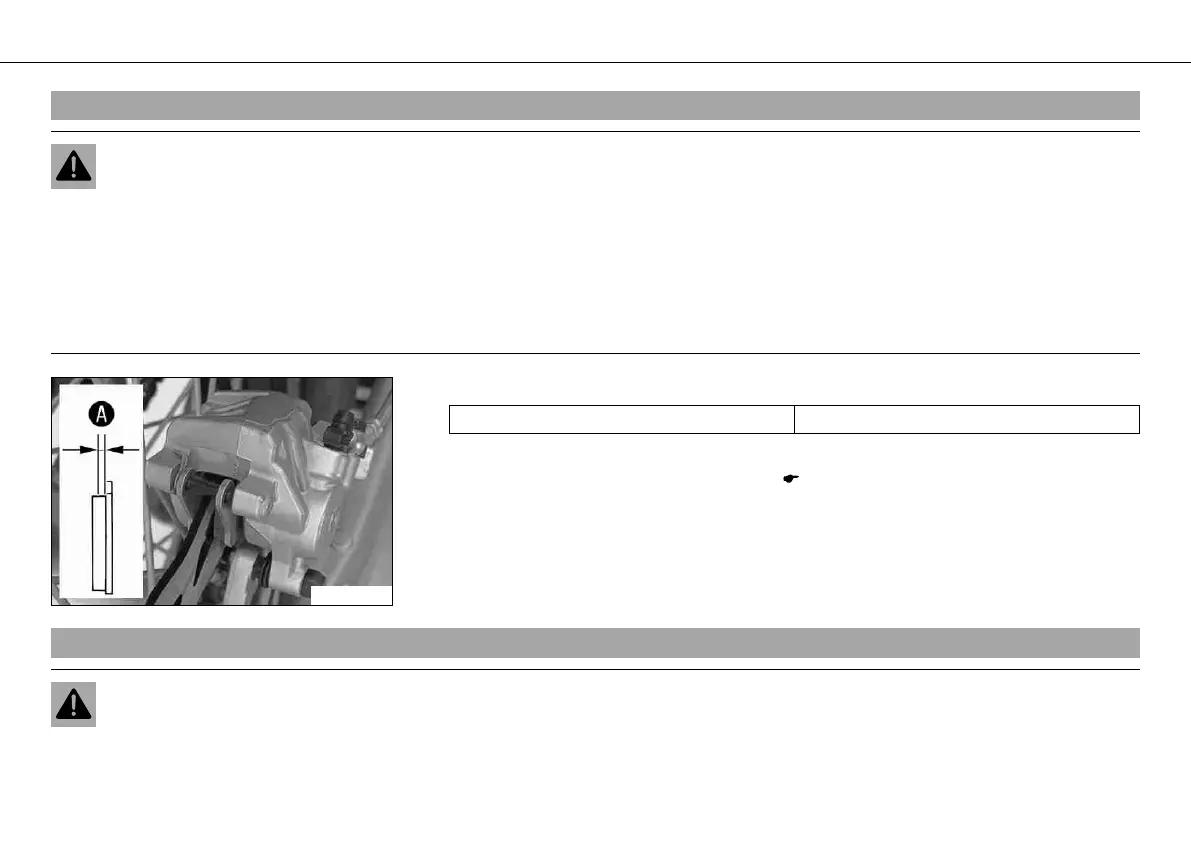

9.41Checking the rear brake linings
Warning
Danger of accidents Reduced braking due to worn brake linings.
– Worn brake linings should be replaced immediately in an authorized KTM workshop.
Note
Danger of accidents Reduced braking due to damaged brake discs.
– If the brake linings are not changed in time, the steel brake lining carriers grind on the brake disc. The braking effect is greatly
reduced and the brake discs are destroyed.
100260-10
– Check the brake linings for minimum thickness.
Minimum thickness ≥1mm (≥0.04in)
» If the minimum thickness is less than specified:
–
Change the rear brake linings.x ( S. 97)
9.42Changing rear brake liningsx
Warning
Danger of accidents Improper brake maintenance and repair.
– Always have your brake system maintained and repaired in an authorized KTM workshop.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
