KTM 690 SMC - Changing the Headlight Bulb

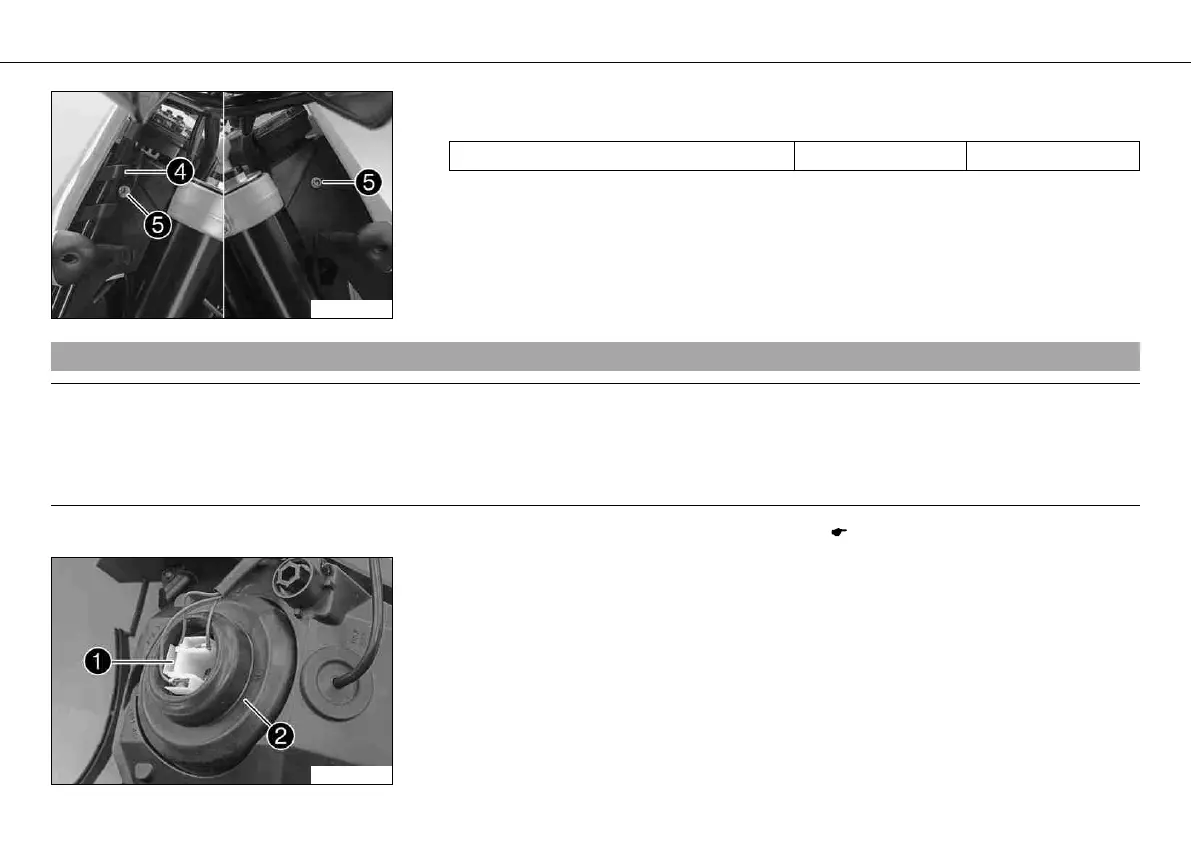

MAINTENANCE WORK ON CHASSIS AND ENGINE 122
100296-10
– Position brake-hose guide. Mount and tighten screws.
Guideline
Remaining screws, chassis M6 10Nm (7.4lbfft)
9.61Changing the headlight bulb
Note
Damage to reflector Keep the glass of the bulb free of grease.
– Clean the glass bulb with a clean cloth before mounting. Any grease on the glass will evaporate by the heat and be deposited on the
reflector.
– Remove the headlight mask with the headlight. ( S. 120)
600610-10
– Pull off connector.
– Take off rubber cap of the headlight bulb.
