KTM 690 SMC User Manual

OPERATING ELEMENTS 32

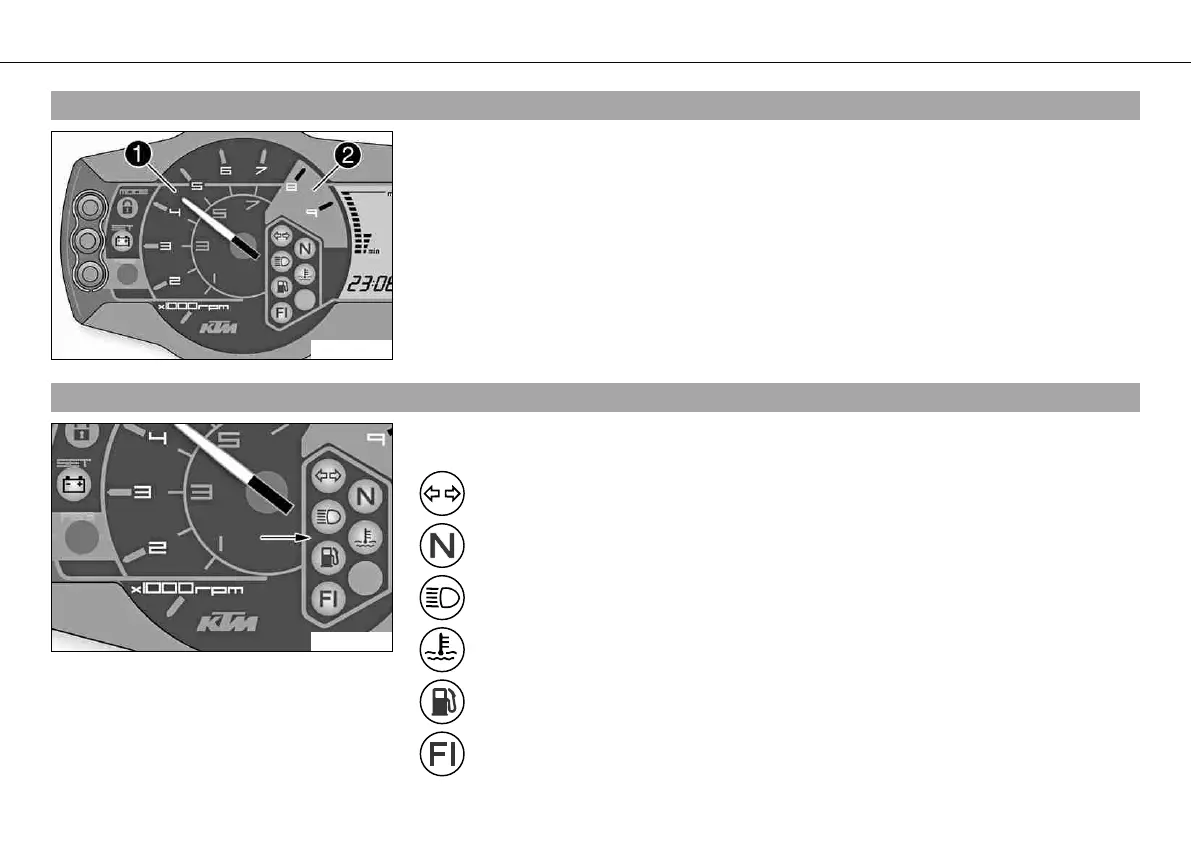

5.15Combination instrument - tachometer
100118-10
The tachometer displays the engine speed in revolutions per minute.
The red marking shows the excess engine speed range.
5.16Combination instrument - control lamps
100119-10
The indicator lamps provide additional information on the operating state of the motorcycle.
Possible states
Flashing indicator flashes green in flash rhythm –Flasher light is switched
on.
Idling speed indicator lamp lights up green –Transmission is in neutral.
High beam indicator lamp lights up blue –High beam is switched on.
Temperature warning lamp lights up red –Coolant has reached a critical
value.
Fuel level warning lamp lights up orange –Fuel level has reached the reserve
mark. Display switches toTRIPF.
FIwarning lamp(MIL) lights/flashes orange –The OBD has detected an
emission- or safety-critical error.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
