KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 84
100135-10

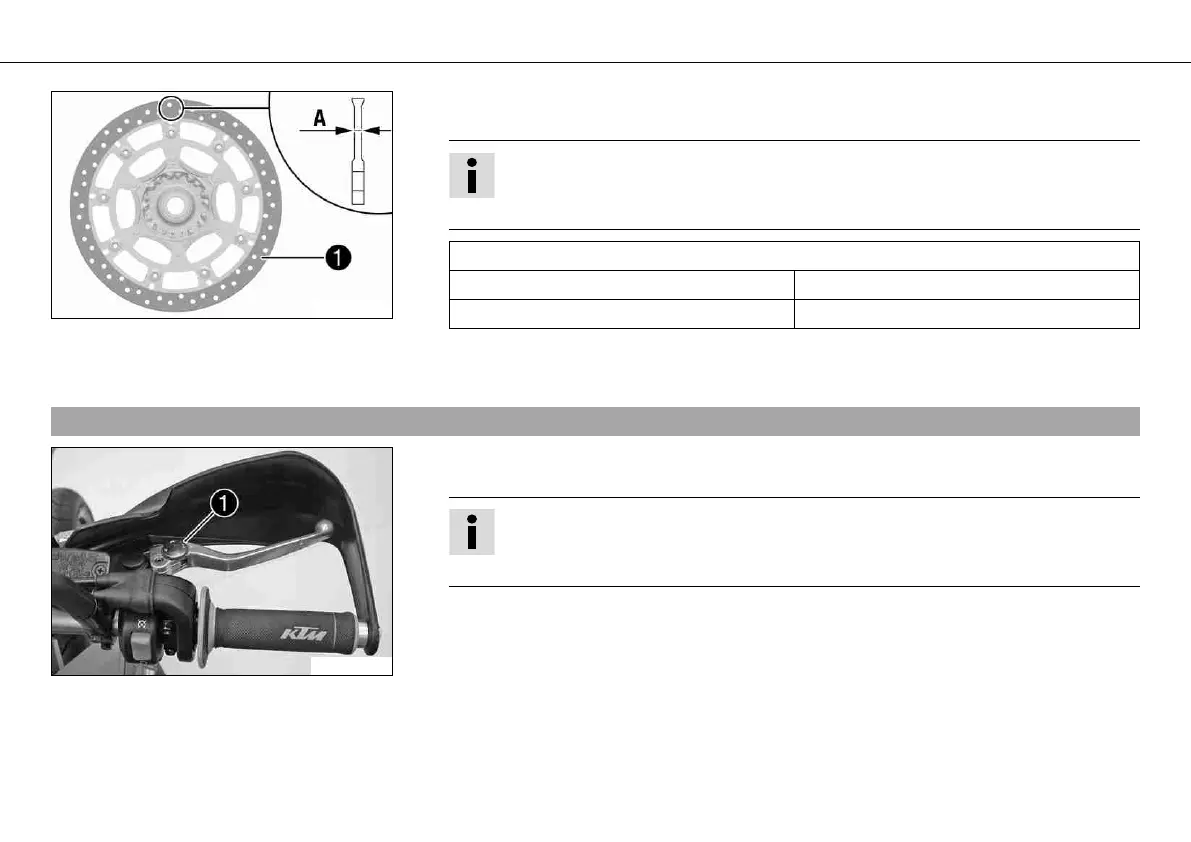

– Check the thickness of the front and rear brake discs at several places on the disc to
see if it conforms to measurement.
Info
Wear reduces the thickness of the brake disc around the area used by the brake
linings..
Wear limit of brake discs
front 4.0mm (0.157in)
Rear 4.5mm (0.177in)
» If the brake disc thickness is less than the specified value:
– Change the brake disc.
9.29Adjusting basic position of handbrake lever
600598-10
– Adjust the basic setting of the handbrake lever to your hand size by turning adjusting
wheel.
Info
Pull the brake lever forwards and turn the adjusting wheel.
Do not make any adjustments while riding!

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
