KTM 690 SMC User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 108
600600-01

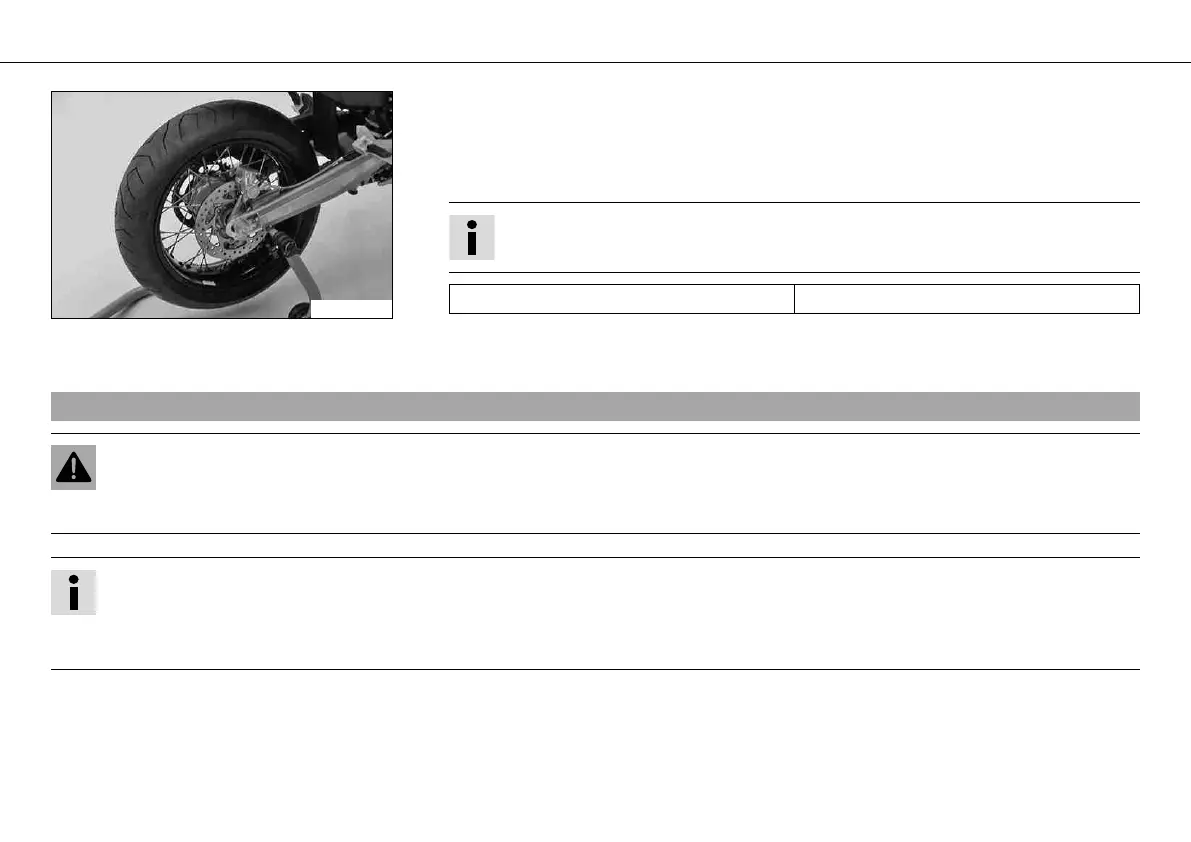

– Check the front and rear tire for cuts, penetrations and other damage.
» If the tires exhibits cuts, penetrations or other damage:
– Change the tires.
– Check the depth of the tread.
Info
Note local national regulations concerning the minimum tread depth.
Minimum tread depth ≥2mm (≥0.08in)
» If the minimum tread depth is insufficient:
– Change the tires.
9.49Checking spoke tension
Warning
Danger of accidents Unstable riding behavior due to loose spokes.
– If you ride with loose spokes, the spokes can break. Have the spoke tension corrected in an authorized KTM workshop.
Info
A loose spoke can cause wheel imbalance, which leads to more loose spokes in a short time.
If the spokes are too tight, they can break due to local overload.
Check the spoke tension regularly, especially on a new motorcycle.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
