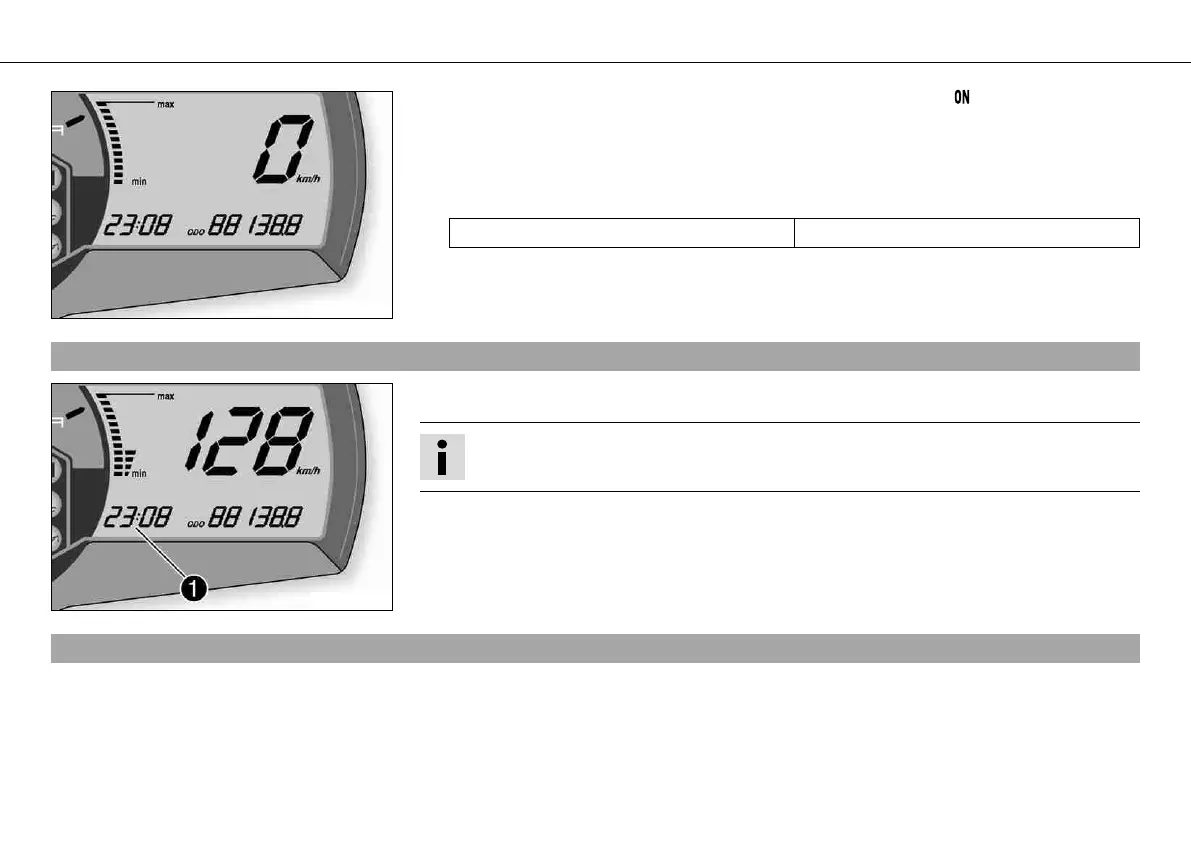

KTM 690 SMC User Manual

OPERATING ELEMENTS 35
700120-01
– Switch on the ignition by turning the ignition key in the position .
– Press theMODEbutton several times until theODO display mode is active.
– Keep the MODEbutton pressed until the display mode changes fromKm/h to Mph or
from Mph to Km/h.
Guideline
Activation duration of MODEbutton 10s
5.20Combination instrument - time
700115-01
The time is shown in area of the display.
Info
The time must be adjusted after the battery is disconnected or the fuse is changed.
5.21Setting the clock
Condition
The motorcycle is standing.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
