KTM 690 SMC User Manual

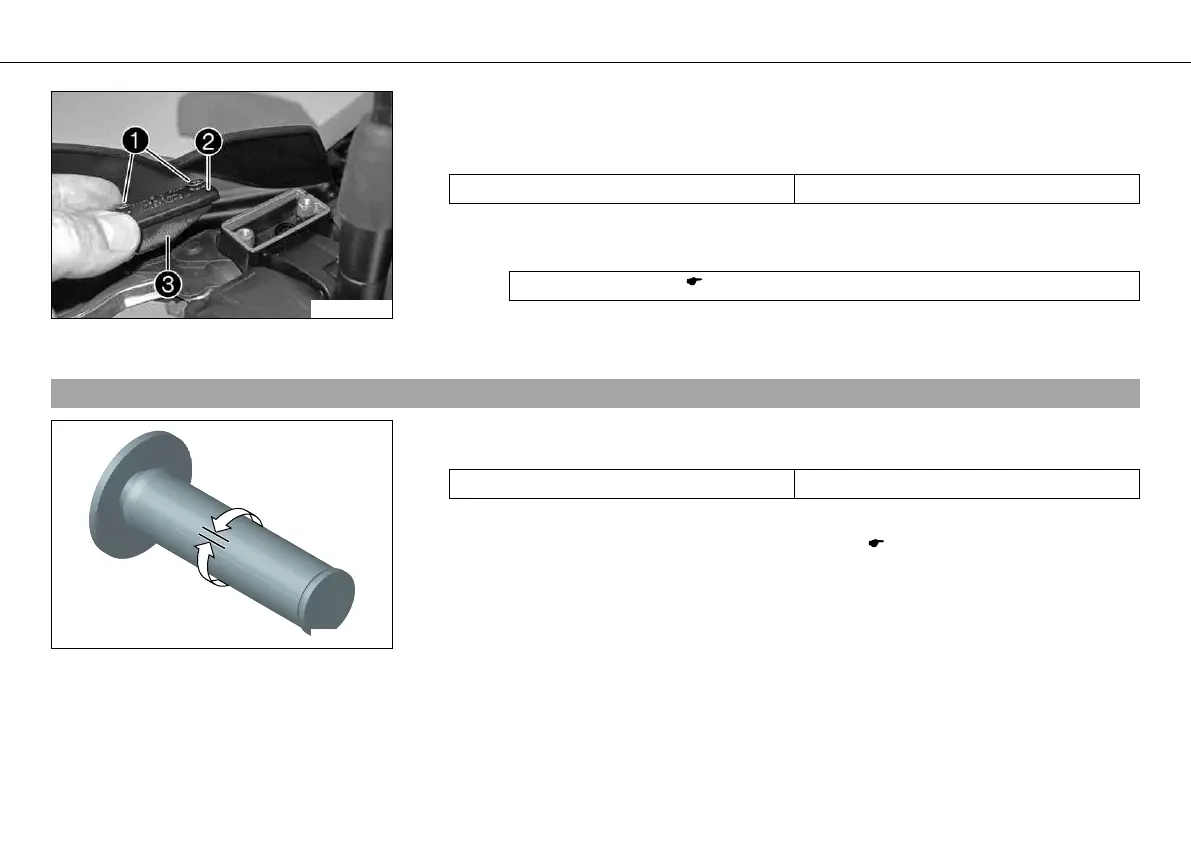

MAINTENANCE WORK ON CHASSIS AND ENGINE 138
100281-10
– Remove screws.
– Remove the cover with membrane.
– Check the fluid level.
Fluid level under top level of container. 4mm (0.16in)
» If the fluid level does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( S. 174)
– Check parts for damage and wear. Replace damaged or worn parts.
– Position the cover with the membrane. Mount and tighten screws.
9.76Checking play in gas Bowden cable
400192-10
– Move the handlebar to the straight-ahead position. Move the throttle grip backwards
and forwards to ascertain the play in the gas Bowden cable.
Play in gas Bowden cable 3… 5mm (0.12… 0.2in)
» If the gas Bowden cable play does not meet specifications:
–
Adjust the play in the gas Bowden cable.x ( S. 139)

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
