Kubota B1620 Workshop Manual

TRANSMISSION
B1220, B1620, B1820, WSM
3-M6
(EU)

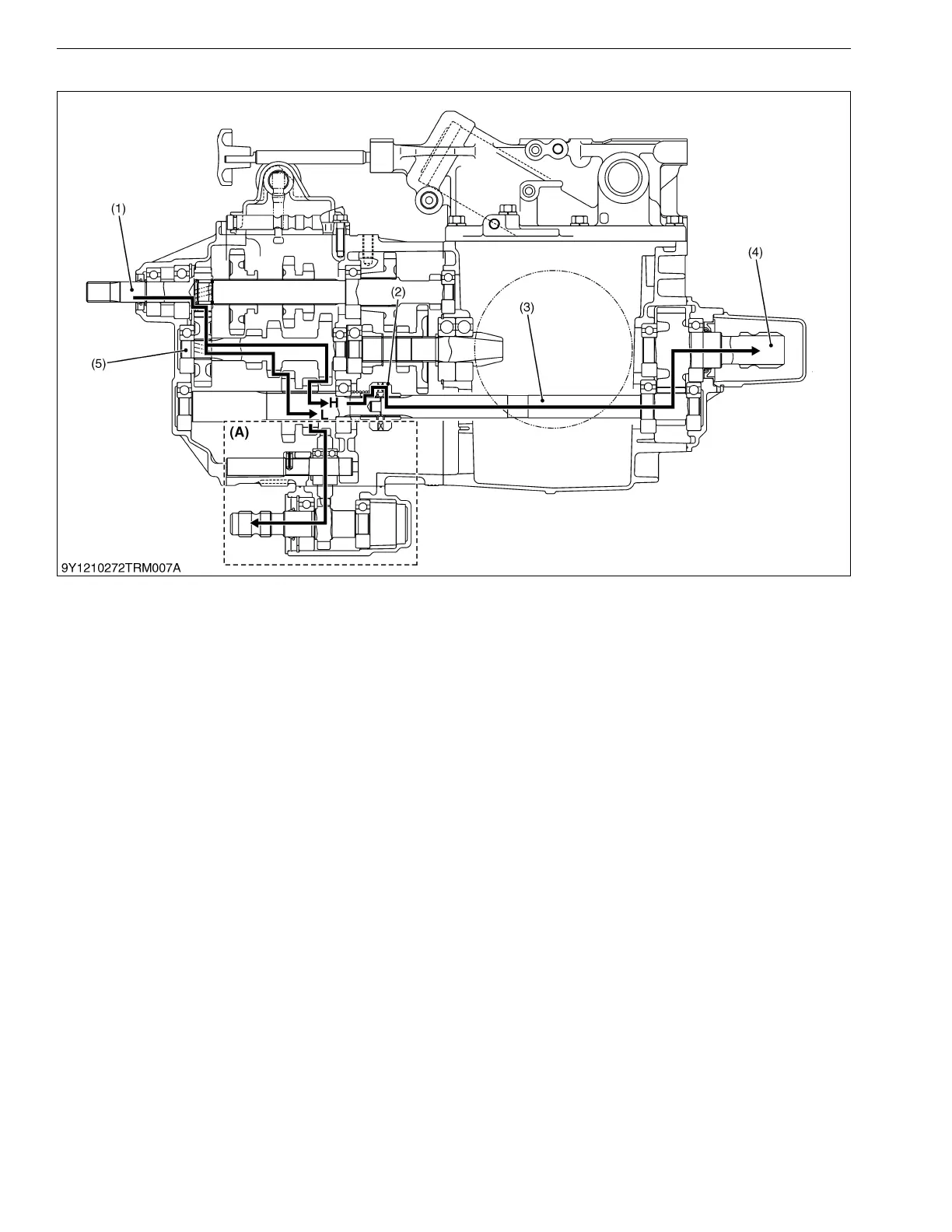

(2) B1620 and B1820
Q L : Low Range
1st gear shaft (1) → 16T gear → 26T gear → Spline boss → 2nd gear shaft (5) → 13T gear → 17T gear → Spline
boss → 3rd gear shaft → Spline boss → One-way clutch (2) → Spline boss → 5th gear shaft → 12T gear → 30T gear
→ PTO shaft (4)
Q H : High Range
1st gear shaft (1) → 16T gear → 26T gear → Spline boss → 2nd gear shaft (5) → 18T gear → 13T gear → Spline
boss → 3rd gear shaft → Spline boss → One-way clutch (2) → Spline boss → 5th gear shaft → 12T gear → 30T gear
→ PTO shaft (4)
9Y1210272TRM0007US0
(1) 1st Gear Shaft with 16T Gear
(2) One-Way Clutch
(3) 5th Gear Shaft with 12T Gear
(4) PTO Gear Shaft with 30T
Gear
(5) 2nd Gear Shaft with
11T-13T-18T Gear
(A) Mid PTO Section
(If equipped)
KiSC issued 07, 2011 A
