STEERING
B1220, B1620, B1820, WSM
7-S14
(EU)
[3] DISASSEMBLING AND ASSEMBLING
(1) Hydraulic Pump for Power Steering [Only B1820]

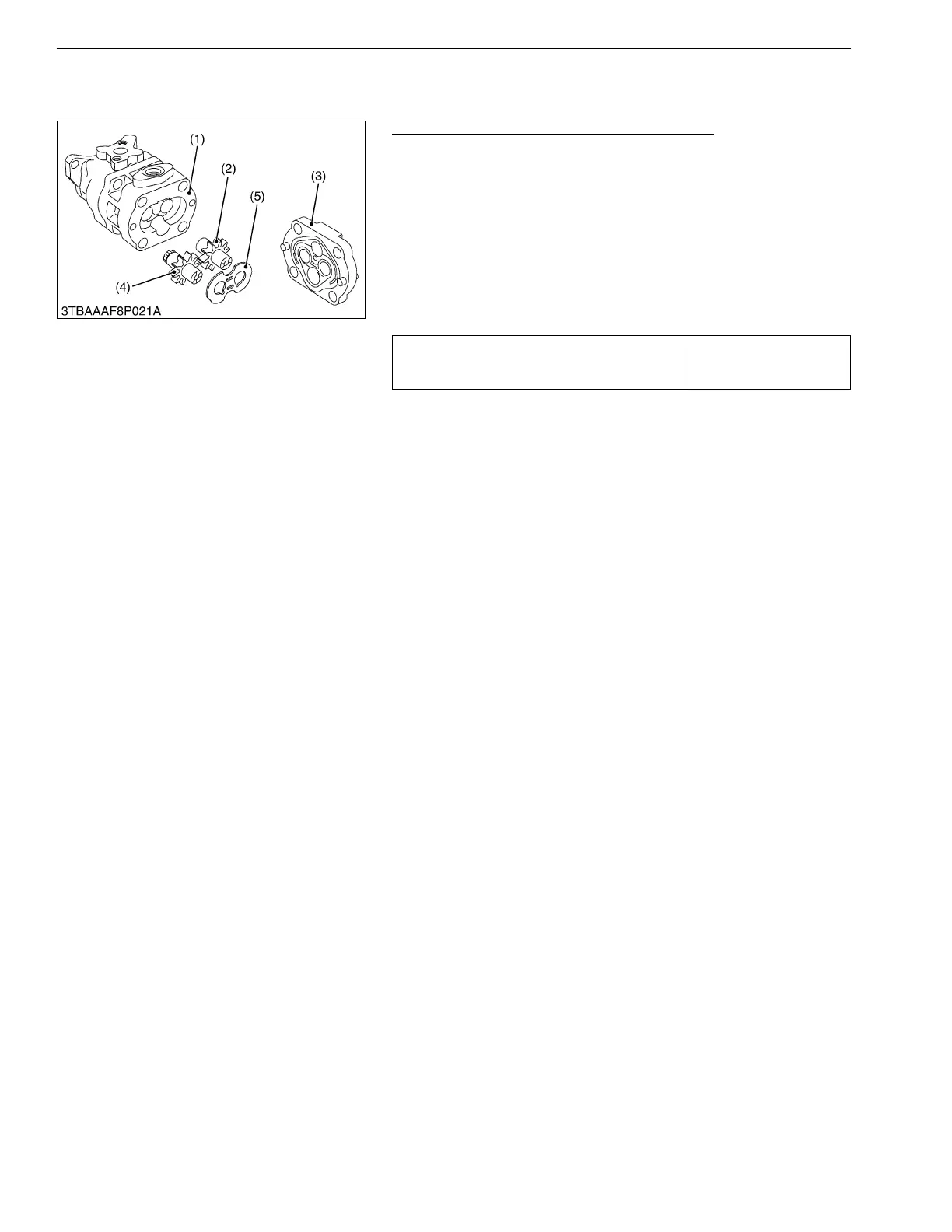

Hydraulic Pump Cover, Side Plate and Gear
1. Secure the hydraulic pump with a vise, and remove the
hydraulic pump cover.
2. Remove the side plate (5).
3. Remove the drive gear (4) and driven gear (2) from the casing
(1).
(When reassembling)
• Take care not to damage the O-ring.
• Align the holes of the cover and casing.
• Install the side plate, noting its location and direction.
• Install the gears, noting its direction.
9Y1210272STS0016US0
Tightening torque Cover mounting screw
35 to 39 N·m
3.5 to 4.0 kgf·m
26 to 29 lbf·ft
(1) Casing
(2) Driven Gear
(3) Hydraulic Pump Cover
(4) Drive Gear
(5) Side Plate
