Kubota B1620 Workshop Manual

HYDRAULIC SYSTEM
B1220, B1620, B1820, WSM
8-M5
(EU)

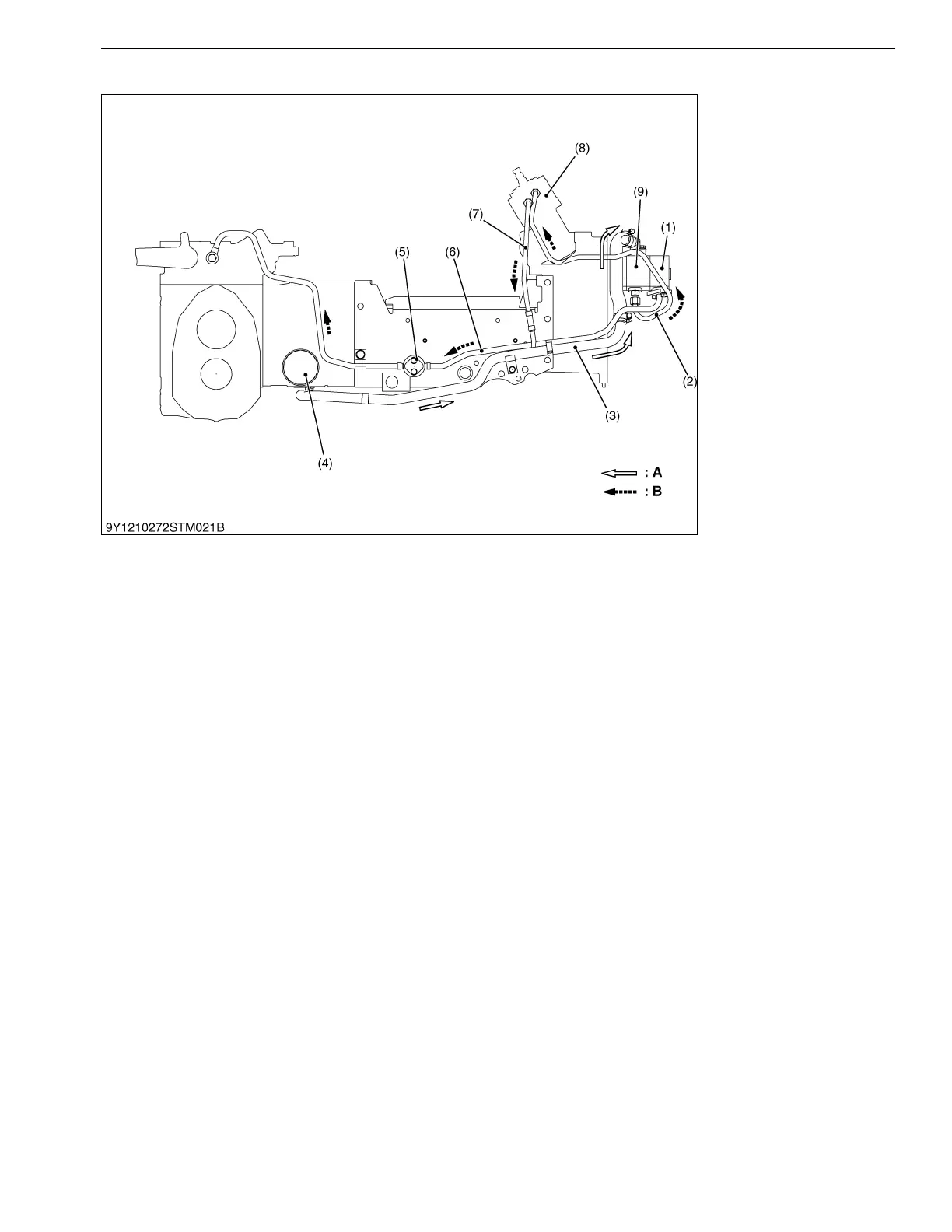

[3] B1820 (POWER STEERING MODEL)
9Y1210272HYM0006US0
(1) Hydraulic Pump
(for 3 Point Hitch)
(2) Power Steering Delivery Pipe
(3) Suction Pipe
(4) Oil Filter
(5) Hydraulic Block
(6) 3 Point Hitch Delivery Pipe
(7) Return Pipe
(8) Power Steering Assembly
(9) Hydraulic Pump
(for Power Steering)
A : Suction Oil
B : Low Pressure Oil
