FRONT AXLE
B1220, B1620, B1820, WSM
6-S4
(EU)
4. CHECKING, DISASSEMBLING AND SERVICING
[1] DISASSEMBLING AND ASSEMBLING
(1) Separating Front Axle

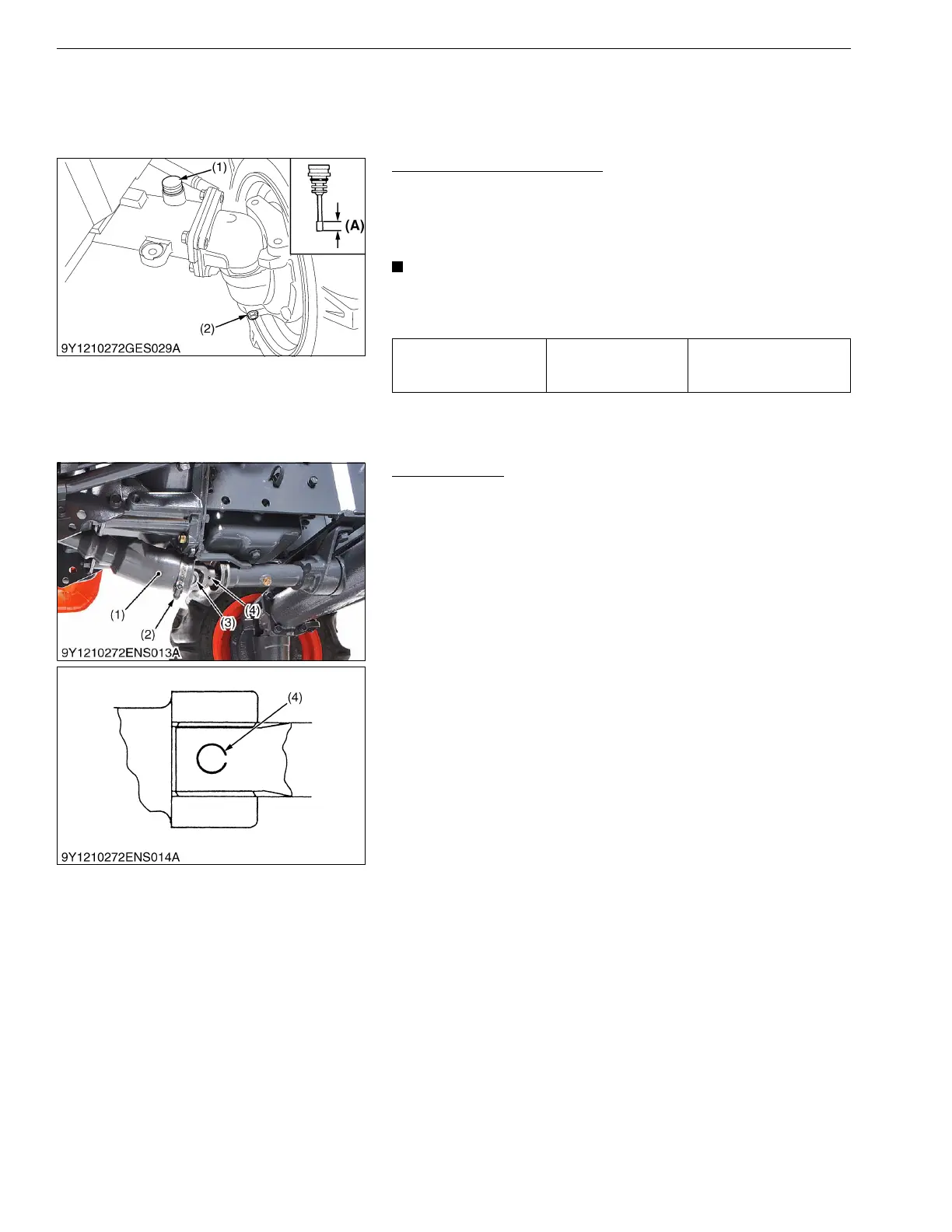

Draining Front Axle Case Oil
1. Place the oil pans underneath the front axle case.
2. Remove the both right and left hand side drain plugs (2) and
filling plug (1) to drain the oil.
3. After draining, reinstall the drain plugs (2).
• Use KUBOTA SUPPER UDT fluid or SAE 80, 90 gear oil.
Refer to "LUBRICANTS, FUEL AND COOLANT". (See page
G-9.)
9Y1210272FAS0005US0
Universal Joint
1. Loosen the clamp (2) and slide the universal joint cover (1) to
the rear.
2. Tap out the spring pin (4).
3. Slide the universal joint (3) to the rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft and universal
joint.
• When inserting the spring pin (4), face the split in the direction
parallel to the universal joint cover (1) so that the water drain
hole may become downward.
• Replace the spring pin (4) with new one.
9Y1210272ENS0009US0
Oil Capacity
3.4 L
3.6 U.S.qts
3.0 Imp.qts
(1) Filling Plug with Dipstick
(2) Drain Plug
(A) Oil level with acceptable within
this range.
(1) Universal Joint Cover
(2) Clamp
(3) Universal Joint
(4) Spring Pin
To Next Page
