Kubota B1620 Workshop Manual

STEERING
B1220, B1620, B1820, WSM
7-S11
(EU)

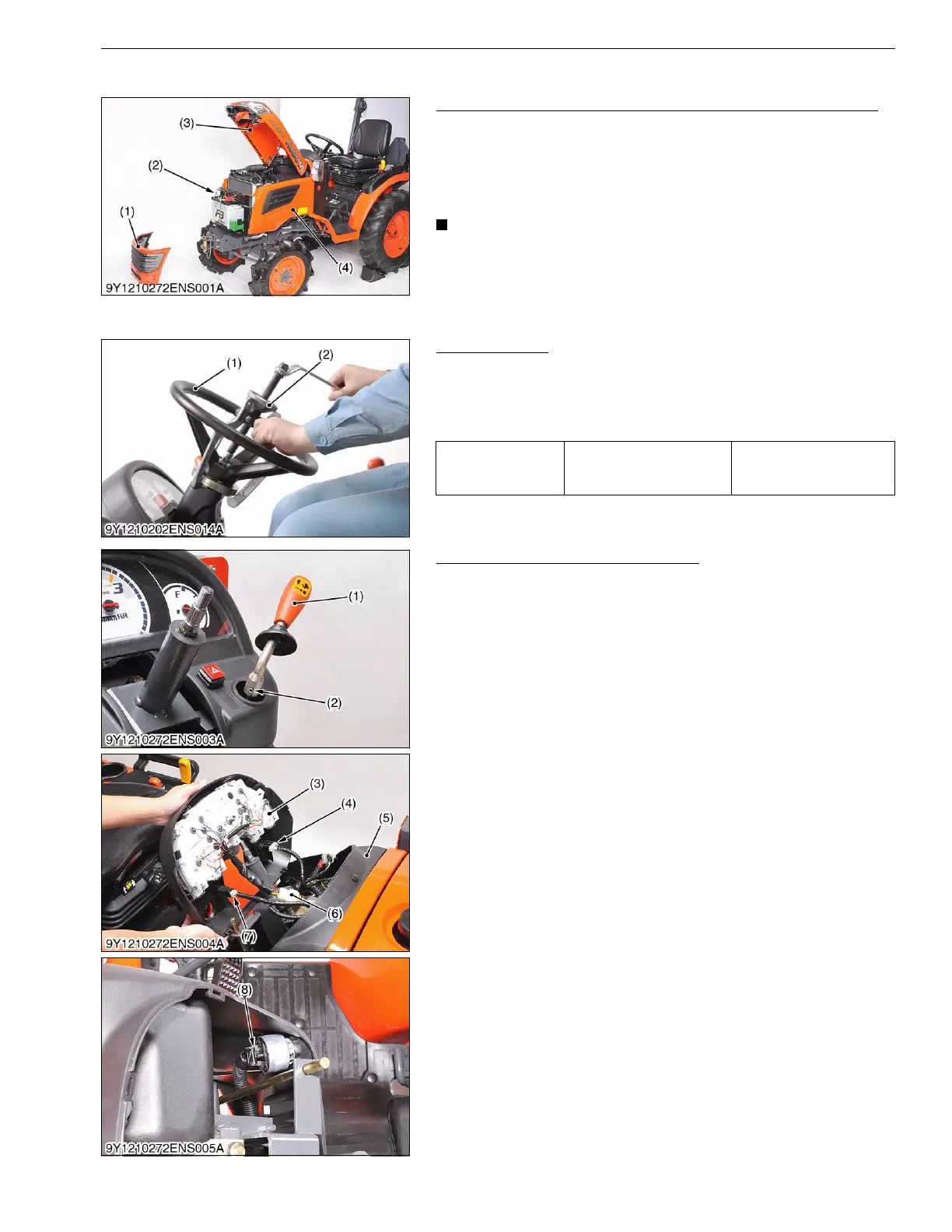

(2) Separating Manual Steering Controller Box Assembly
Bonnet, Front Grille, Side Cover and Battery Negative Cable
1. Open the bonnet (3) and remove the front grille (1).
2. Disconnect the negative cable (2).
3. Disconnect the head light connectors, horn connectors and
remove the bonnet (3).
4. Remove the side covers (4).
NOTE
• When disconnecting the battery cables, disconnect the
negative cable first. When connecting, positive cable first.
9Y1210272ENS0001US0
Steering Wheel
1. Remove the steering wheel cap.
2. Remove the steering wheel mounting nut and remove the
steering wheel (1) with a steering wheel puller (2).
(When reassembling)
9Y1210272ENS0005US0
Meter Panel and Panel Under Cover
1. Tap out the spring pin (2) and remove the hand accelerator
lever (1).
2. Open the meter panel (3) and disconnect the hourmeter cable,
meter panel connector (6), combination switch connector (4)
and hazard switch connector (7) (Except B1220). Then remove
the meter panel (3).
3. Disconnect the main switch connector (8) and remove the panel
under cover (5).
9Y1210272ENS0006US0
(1) Front Grille
(2) Battery Negative Cable
(3) Bonnet
(4) Side Cover
Tightening torque
Steering wheel mounting
nut
30 to 49 N·m
3.0 to 5.0 kgf·m
22 to 36 lbf·ft
(1) Steering Wheel (2) Steering Wheel Puller
(1) Hand Accelerator Lever
(2) Spring Pin
(3) Meter Panel
(4) Combination Switch Connector
(5) Panel Under Cover
(6) Meter Panel Connector
(7) Hazard Switch Connector
[Except B1220]
(8) Main Switch Connector
KiSC issued 07, 2011 A

Kubota B1620 Specifications

General

Engine Type	Diesel
Cylinders	3
Fuel Type	Diesel
Hydraulic System Type	Open center
Drive	4WD
3-Point Hitch Category	Category I
