Kubota B1620 Workshop Manual

BRAKES
B1220, B1620, B1820, WSM
5-M2
(EU)
[2] B1620 AND B1820
Independent mechanical wet disc brakes are used for the right and left traveling brakes. They are operated by
the brake pedals through the mechanical linkages and provide stable braking and require little adjustment.
The parking brake is a mechanical type which is designed to actuate the traveling brakes through the linkages.
Depressing the parking brake pedal (3) results in the same state as the obtained when the brake pedals are pressed.
9Y1210272BRM0002US0

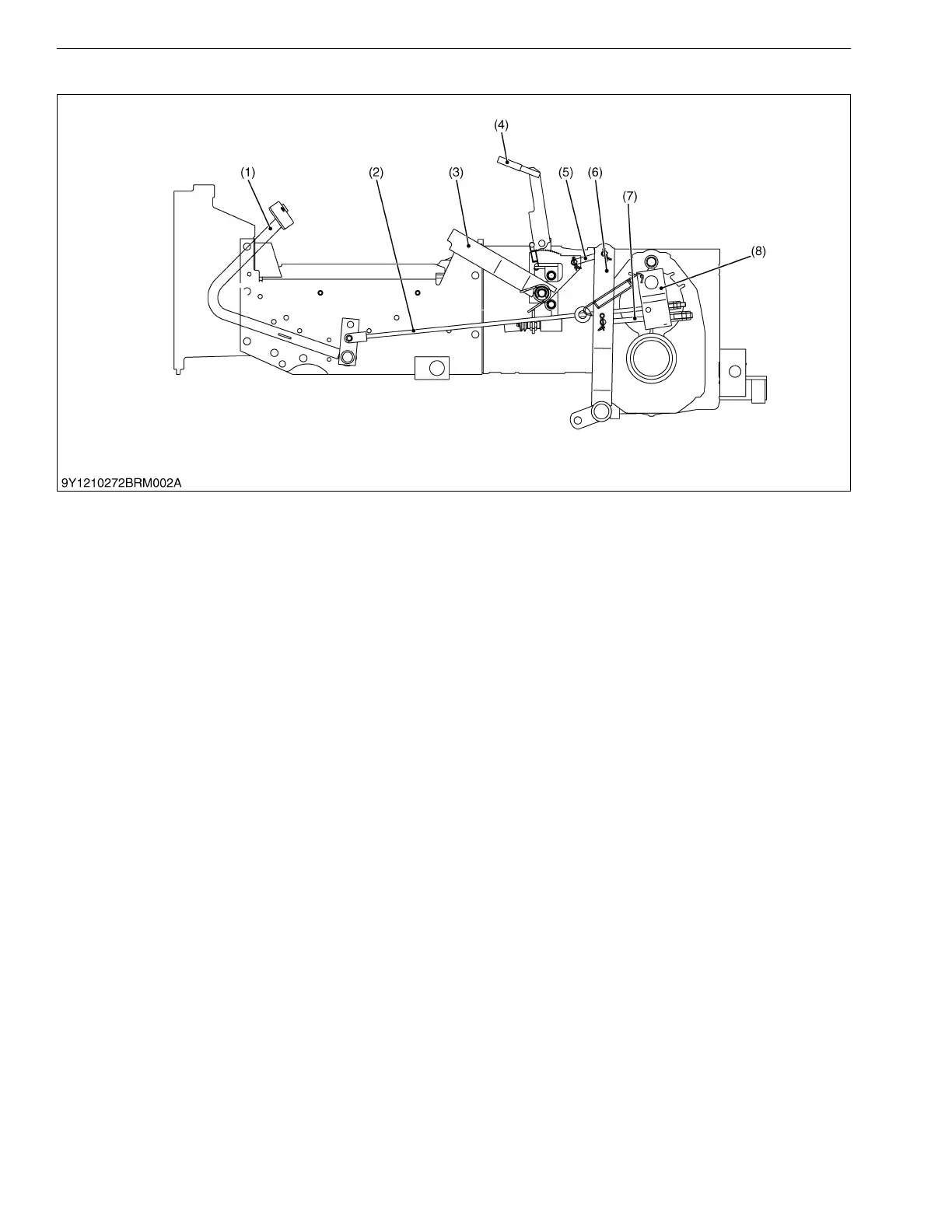

(1) Brake Pedal
(2) Brake Rod
(3) Parking Brake Pedal
(4) Parking Brake Release Lever
(5) Parking Brake Lever Rod
(6) Parking Brake Arm
(7) Parking Brake Rod
(8) Brake Cam Lever
