Kubota B1620 Workshop Manual

GENERAL
B1220, B1620, B1820, WSM
G-51
(EU)

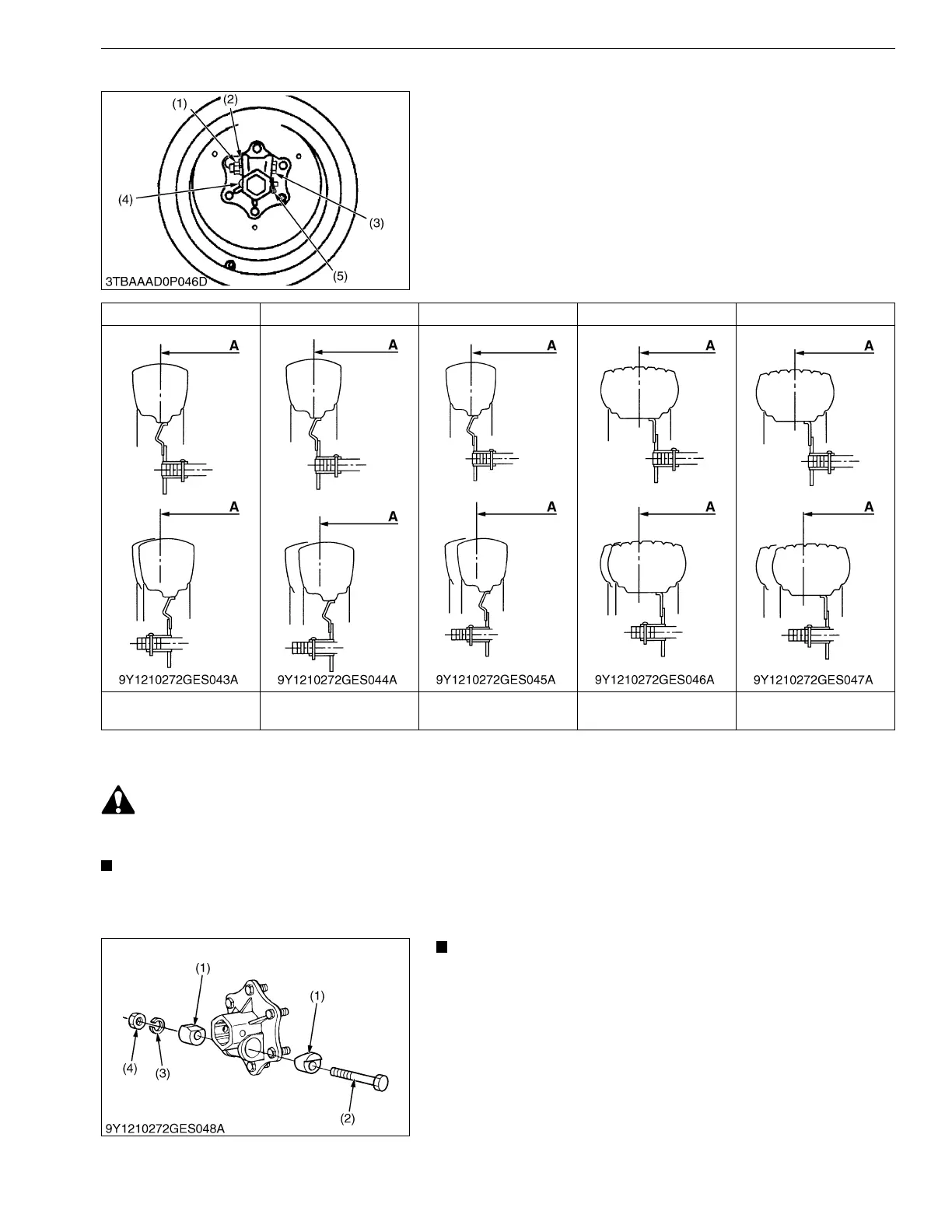

(2) Rear Wheels
Rear tread can be adjusted in 2 or 3 steps depending on the
model.
1. Loosen the nut (1) of cotter pin bolt.
2. Remove the snap pin (5) and wheel hub pin (4).
3. Change the tread to desired position.
4. Re-set the wheel hub pin, snap pin and cotter pin bolt.
9Y1210272GEG0048US0
CAUTION
• When working on slopes or working with trailer, set the wheel tread as wide as practical for the job for
maximum stability.
IMPORTANT
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving
the tractor 200 m (200 yards) and there after daily check service.
* Remove the wheel hub and reinstall it on the other side of the wheel disk, then set the wheel as shown.
NOTE
• Insert the bolt (2) from the recessed side of both cotters
and tighten the nut (4) with flat side of cotter as shown in
figure.
9Y1210272GEG0049US0
(1) Nut
(2) Spring Washer
(3) Bolt
(4) Wheel Hub Pin
(5) Snap Pin
7 - 16 Farm 8 - 16 Farm 9.5 - 16 Farm 212/80D - 15 Turf 2 × 12.00-15 Turf
707.0 to 1035mm
(27.84 to 40.74 in.)
743.0 to 1035 mm
(29.26 to 40.74 in.)
791.0 to 1069 mm
(31.15 to 42.08 in.)
743.0 to 1035 mm
(29.26 to 40.74 in.)
843 to 985 mm
(33.2 to 38.7 in.)
A : Tread
(1) Cotter
(2) Bolt
(3) Spring Lock Washer
(4) Nut
