HYDRAULIC SYSTEM
B1220, B1620, B1820, WSM
8-M4
(EU)

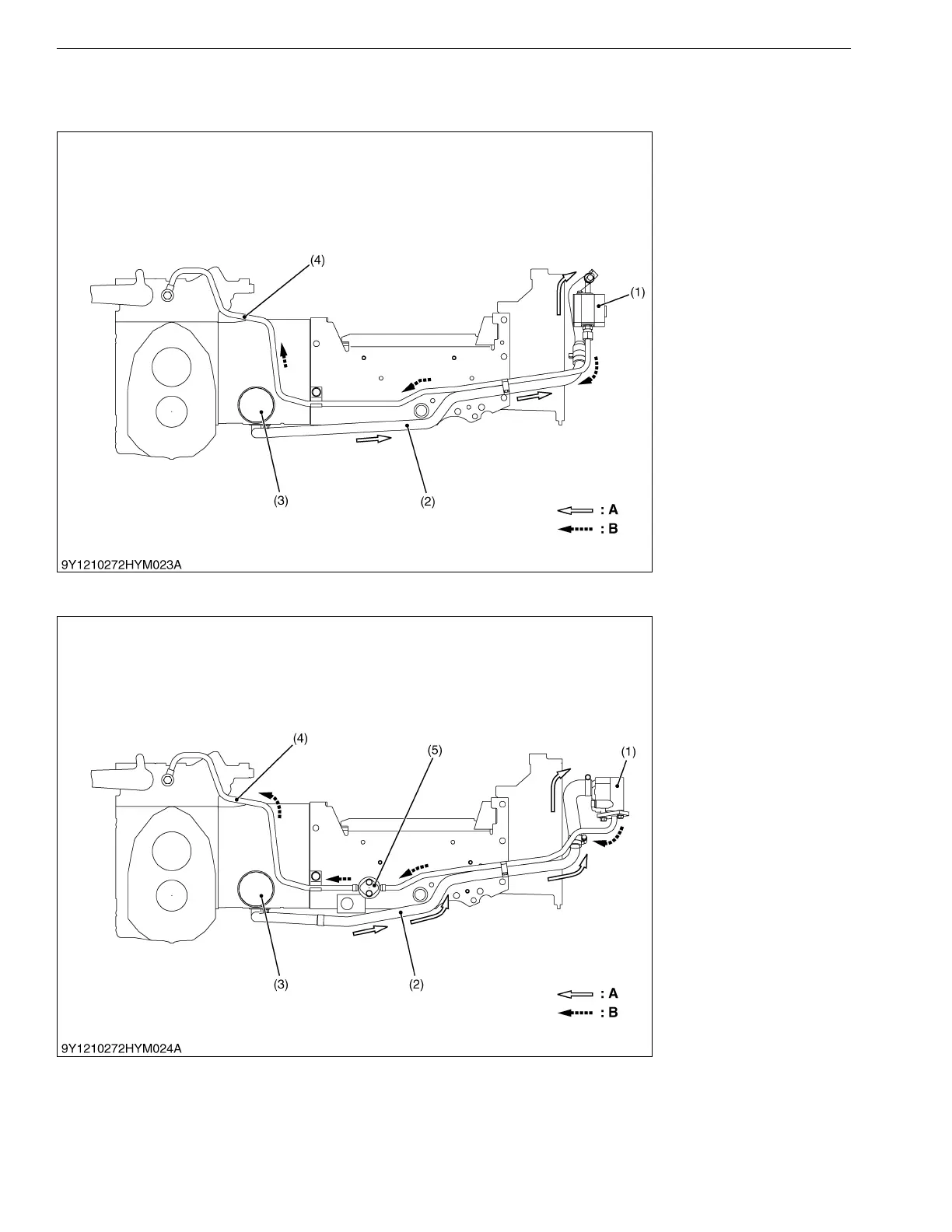

2. OIL FLOW
[1] B1220
9Y1210272HYM0004US0
[2] B1620 AND B1820 (MANUAL STEERING MODEL)
9Y1210272HYM0005US0
(1) Hydraulic Pump
(2) Suction Pipe
(3) Oil Filter
(4) Delivery Pipe
A : Suction Oil
B : Low Pressure Oil
(1) Hydraulic Pump
(2) Suction Pipe
(3) Oil Filter
(4) Delivery Pipe
(5) Hydraulic Block
A : Suction Oil
B : Low Pressure Oil
KiSC issued 07, 2011 A
