BRAKES
B1220, B1620, B1820, WSM
5-M1
(EU)
1. LINKAGE

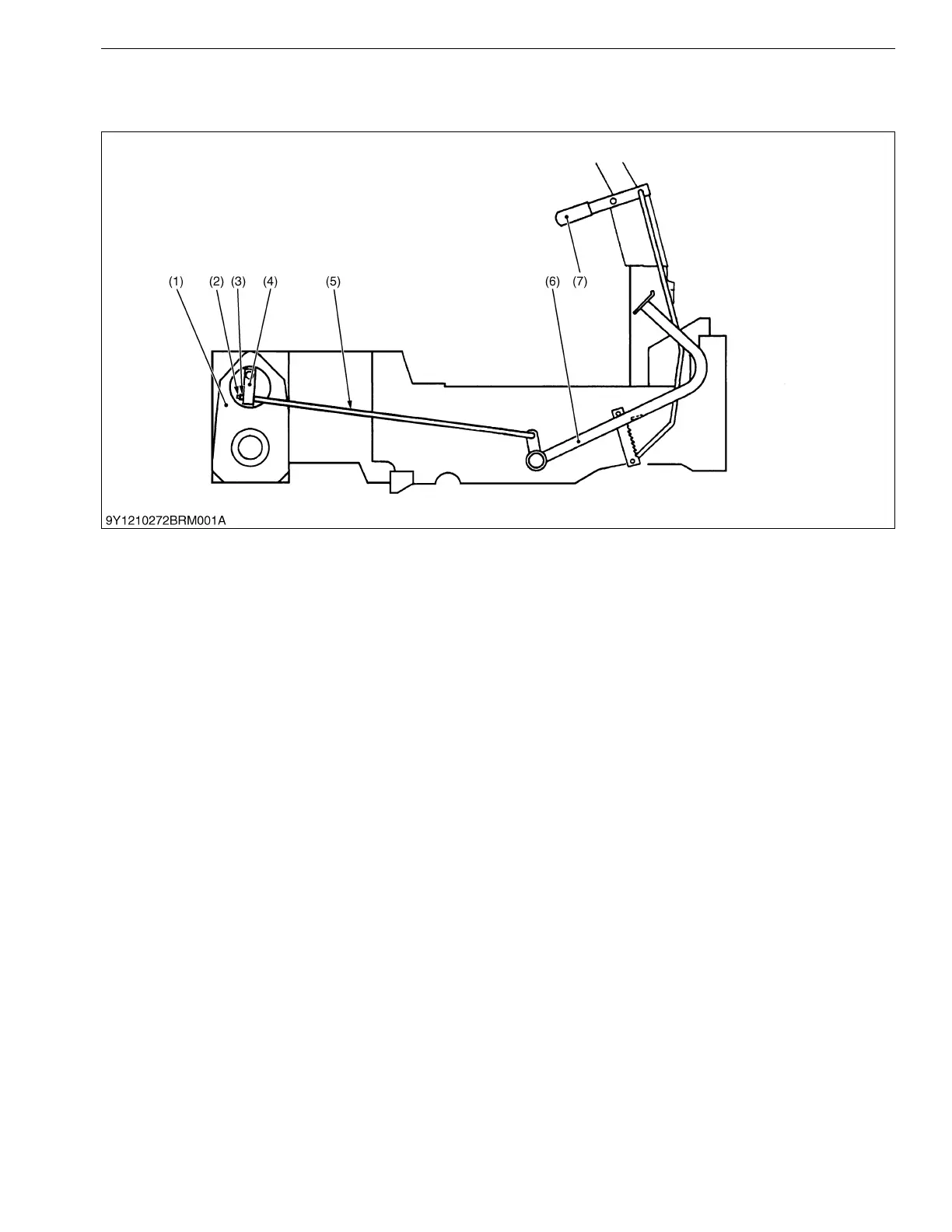

[1] B1220
Independent mechanical wet disc brakes are used for the right and left traveling brakes. They are operated by
the brake pedals through the mechanical linkages and provide stable braking and require little adjustment.
The parking brake is a mechanical type which is designed to actuate the traveling brakes through the linkages
Pulling the parking brake lever (7) results in the same state as the obtained when the brake pedals are depressed.
9Y1210272BRM0001US0
(1) Rear Axle Case
(2) Lock Nut
(3) Adjusting Nut
(4) Brake Cam Lever
(5) Brake Rod
(6) Brake Pedal
(7) Parking Brake Lever
