HYDRAULIC SYSTEM
B1220, B1620, B1820, WSM
8-S14
(EU)
Lowering Speed Adjusting Valve
1. Remove the lowering speed adjusting valve body (2) with the
lowering speed adjusting shaft (1).
2. Draw out the poppet (3) and the spring (4).
(When reassembling)
• Take care not to damage the O-rings.
9Y1210272HYS0021US0
(4) Hydraulic Control Valve
Spool
1. Remove the spool (1).
9Y1210272HYS0022US0
Relief Valve
1. Remove the adjusting plug (1), spring (2) and poppet (3).
(When reassembling)
• Recutting the threads of adjusting plug and control valve inner
thread.
• After adjusting the pressure, be sure to stake the adjusting plug
and control valve body.
9Y1210272HYS0023US0

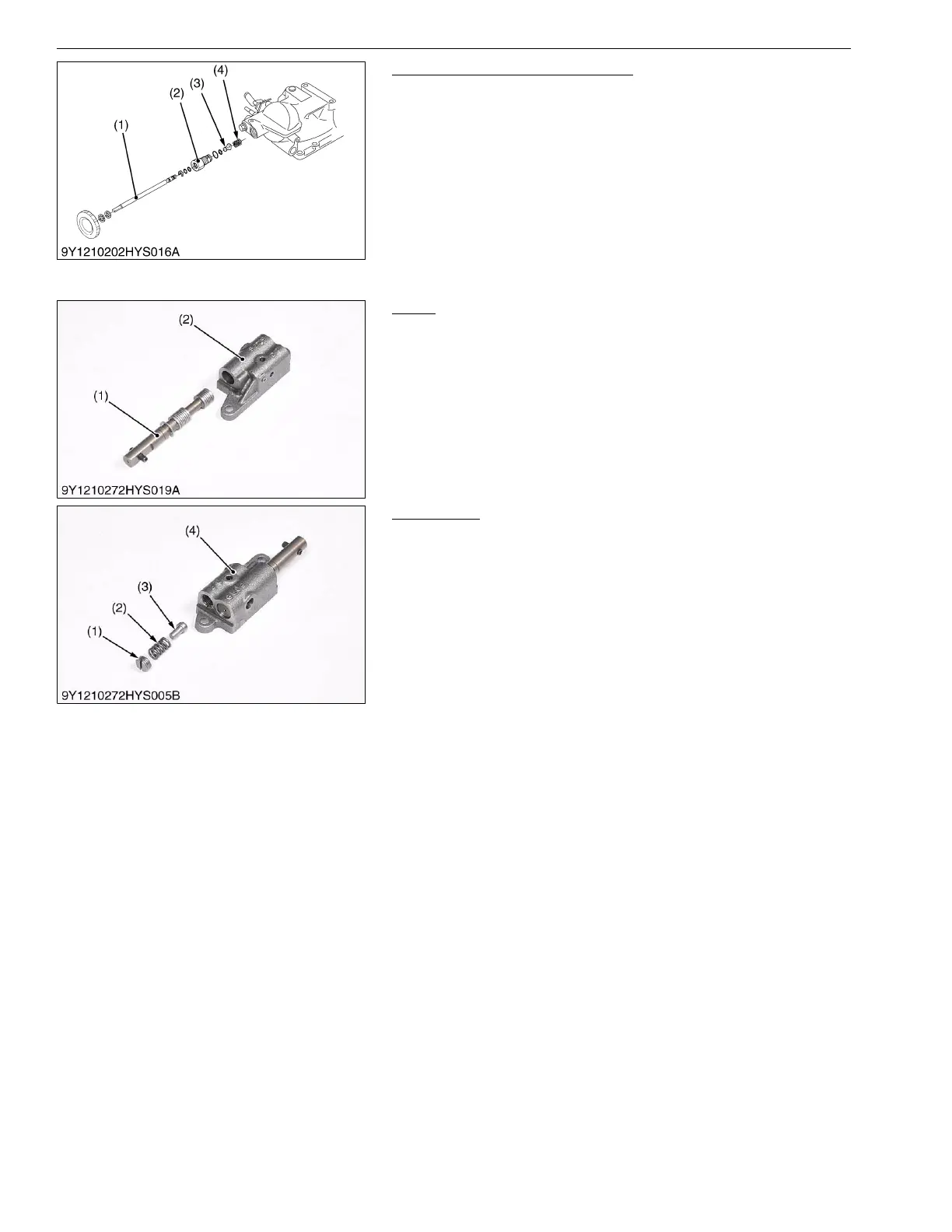

(1) Lowering Speed Adjusting Shaft
(2) Lowering Speed Adjusting Valve
Body
(3) Poppet
(4) Spring
(1) Spool (2) Valve Body
(1) Adjusting Plug
(2) Spring
(3) Poppet
(4) Valve Body
