ELECTRICAL SYSTEM
B1220, B1620, B1820, WSM
9-M18
(EU)
4. LIGHTING SYSTEM
[1] B1220
The lighting system consists of light switch, head lights etc..
9Y1210272ELM0010US0
(1) Head Light
The light switch has two position OFF and ON.

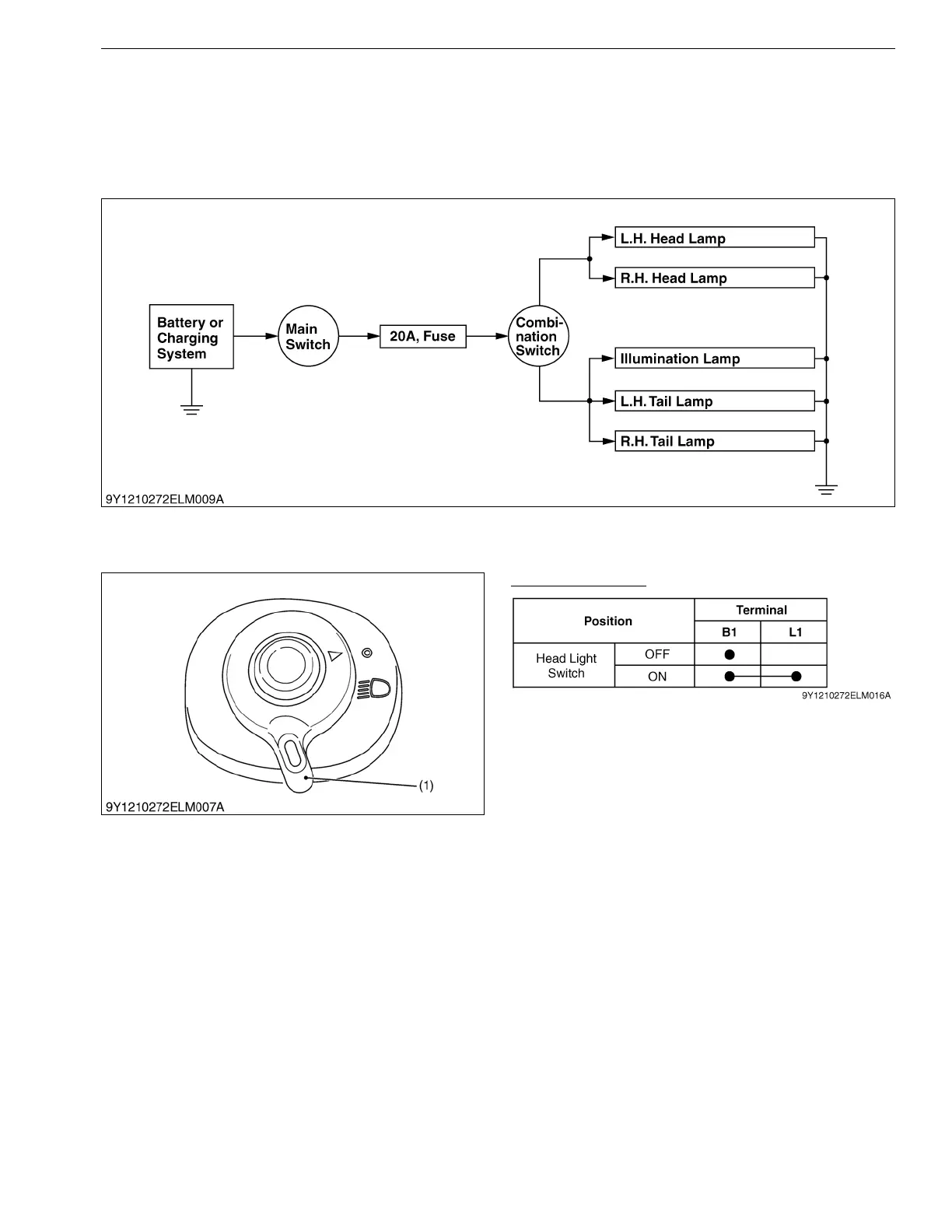

Current passes through the light circuit as shown in the figure above.
9Y1210272ELM0011US0
Head Light Switch
9Y1210272ELM0012US0
(1) Head Light Switch
