ELECTRICAL SYSTEM
B1220, B1620, B1820, WSM
9-M11
(EU)

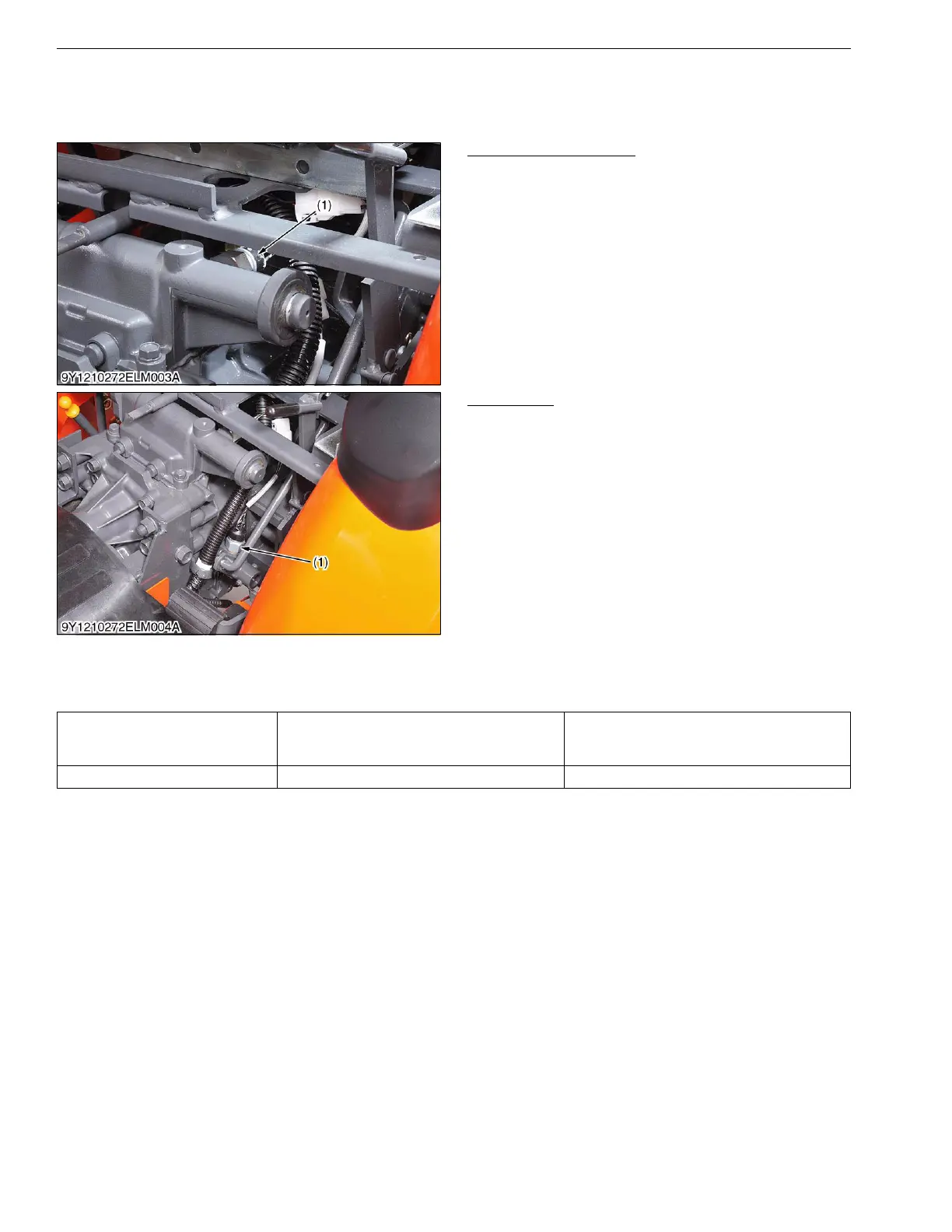

[3] SAFETY SWITCH AND ENGINE CONDITION
(1) Related Switches
[A] Without OPC Type
Main Gear Shift Switch
This switch is located on the main gear shift cover.
When the main gear shift lever is not in neutral position,
this switch is pushed in and electric circuit is opened.
9Y1210272ELM0005US0
PTO Switch
This switch is located near the PTO gear shift lever.
When the PTO gear shift lever is in neutral position, the
PTO switch is pushed in and electric circuit is closed.
9Y1210272ELM0006US0
(2) Engine Starting Conditions
When the following conditions become complete, electric current (12V) reaches starter S terminal through starter
relay from main switch 50 terminal, and the engine can be started.
9Y1210272ELM0007US0
(1) Main Gear Shift Switch
(1) PTO Switch
Rear PTO Switch
(Neutral : ON)
(Engaged : OFF)
Main Shift Switch
(Neutral : ON)
(Engaged : OFF)
Condition ON ON
