Kubota B1620 Workshop Manual

ELECTRICAL SYSTEM
B1220, B1620, B1820, WSM
9-M19
(EU)
[2] B1620 AND B1820
The lighting system consists of combination switch (light switch and hazard switch), head lights, tail lights, hazard
lights, etc..
9Y1210272ELM0013US0
(1) Head Light
The light switch, which forms a combination switch with the turn signal light switch, has two position OFF and ON.

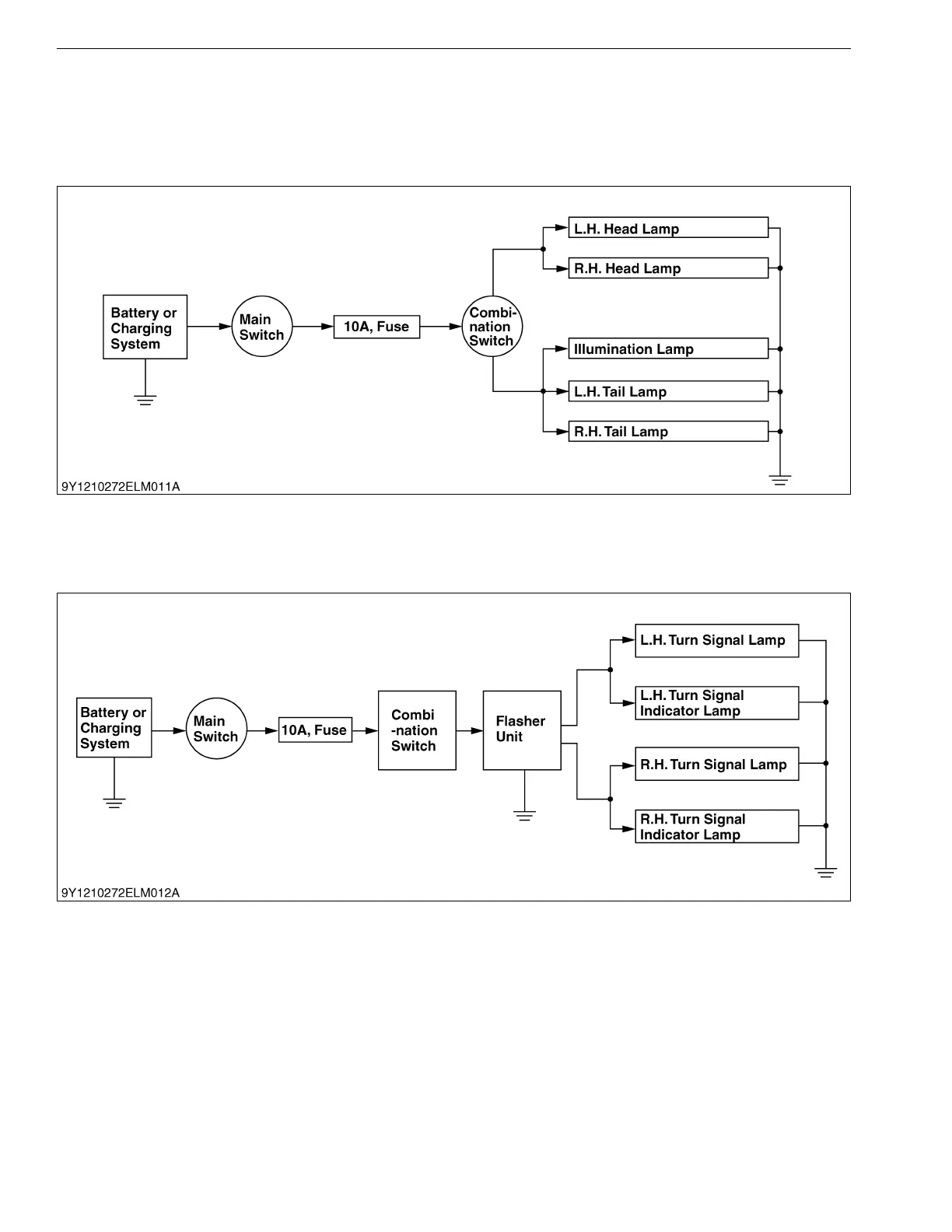

Current passes through the light circuit as shown in the figure above.
9Y1210272ELM0014US0
(2) Turn Signal Light
The turn signal light switch, which forms a combination switch with the light switch, has three position; OFF, 1.,
2.. When using turn signal light switch, blinks only one side light. The operation of the turn signal light switch is given
to priority when the hazard switch and the turn signal light switch are turned on at the same time.
9Y1210272ELM0015US0
