Kubota B1620 Workshop Manual

HYDRAULIC SYSTEM
B1220, B1620, B1820, WSM
8-M3
(EU)
[3] B1820 (POWER STEERING MODEL)

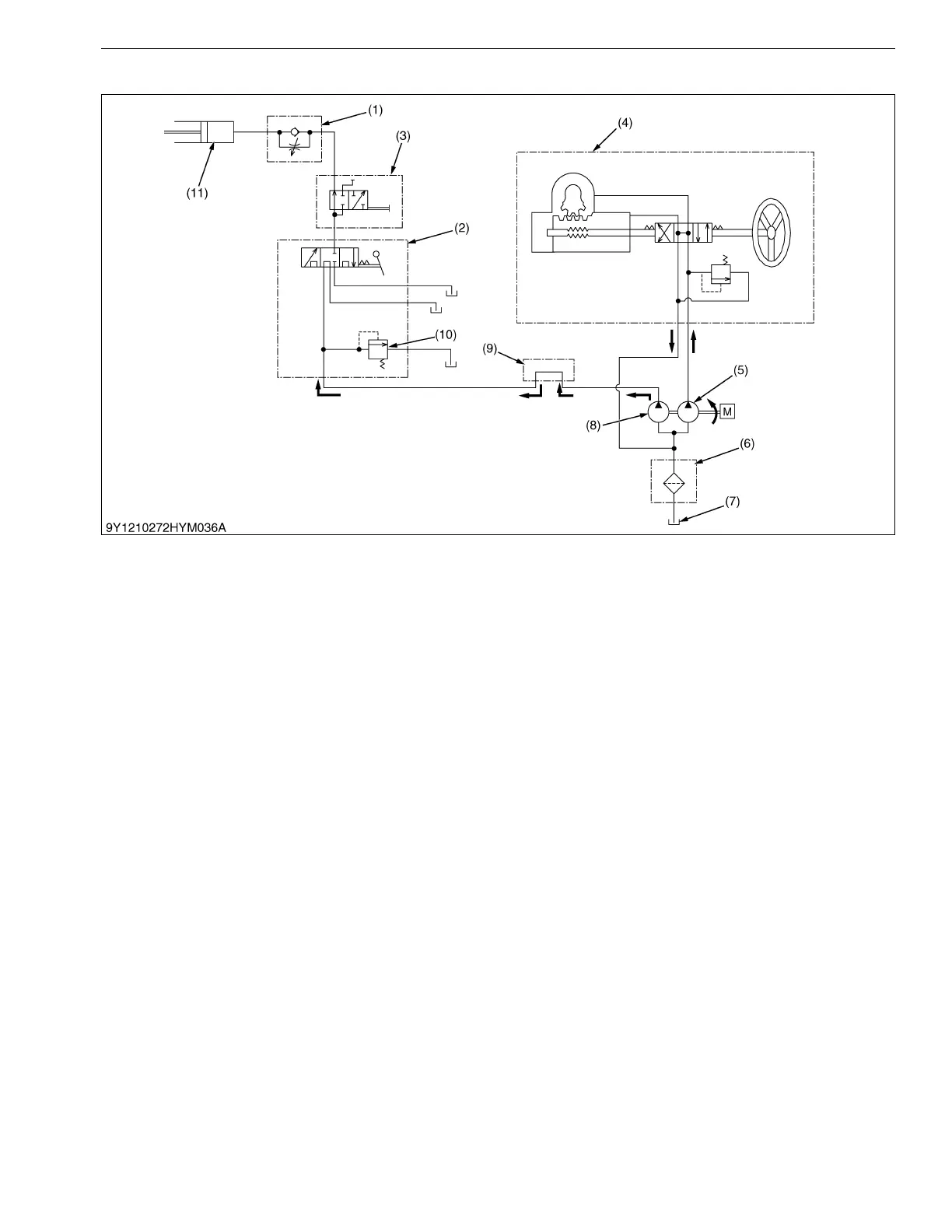

Hydraulic system of B1820 (power steering model) is composed of main components as shown in the figure.
9Y1210272HYM0003US0
(1) Lowering Speed Adjusting
Valve
(2) Hydraulic Control Valve
(3) Rear Hydraulic Outlet
(4) Power Steering Assembly
(5) Hydraulic Pump
(for Power Steering)
(6) Oil Filter
(7) Transmission Case
(8) Hydraulic Pump
(for 3 Point Hitch)
(9) Hydraulic Block
(10) Relief Valve
(11) Hydraulic Cylinder
KiSC issued 07, 2011 A
