PEOPL E 25 0

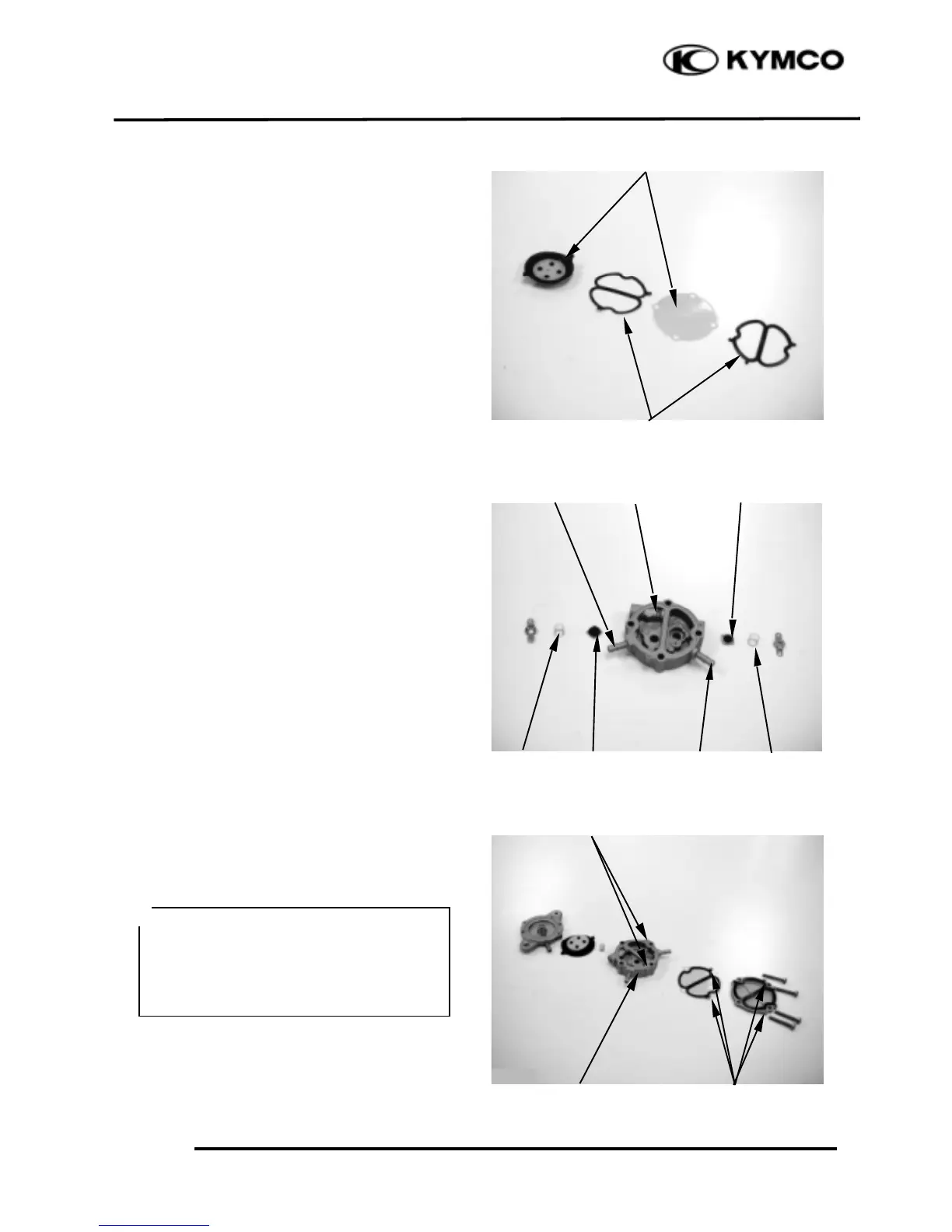

FUEL PUMP INSPECTION
Inspect the fuel pump diaphragms A and B
for damage.
Inspect each gasket for damage.
Inspect the suction valve, outlet valve and
relief valve in the fuel pump body for damage,
cracks or foreign matters.
FUEL PUMP ASSEMBLY
Assemble the fuel pump in the reverse order
of disassembly.
Inlet
Spring
Suction Valve
Diaphragm
Outlet Valve
Gaskets
Relief Valve
Outlet
Dowel Pins
Dowel Pin Holes
Fuel Pump Body
Spring
• During assembly, be sure to install the
gaskets and diaphragms properly to
avoid damage.
• Do not allow any foreign matter to
enter the fuel pump during assembly.
＊
