KYMCO PEOPLE 250 Service Manual

19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS
19-5
PEOPL E 25 0

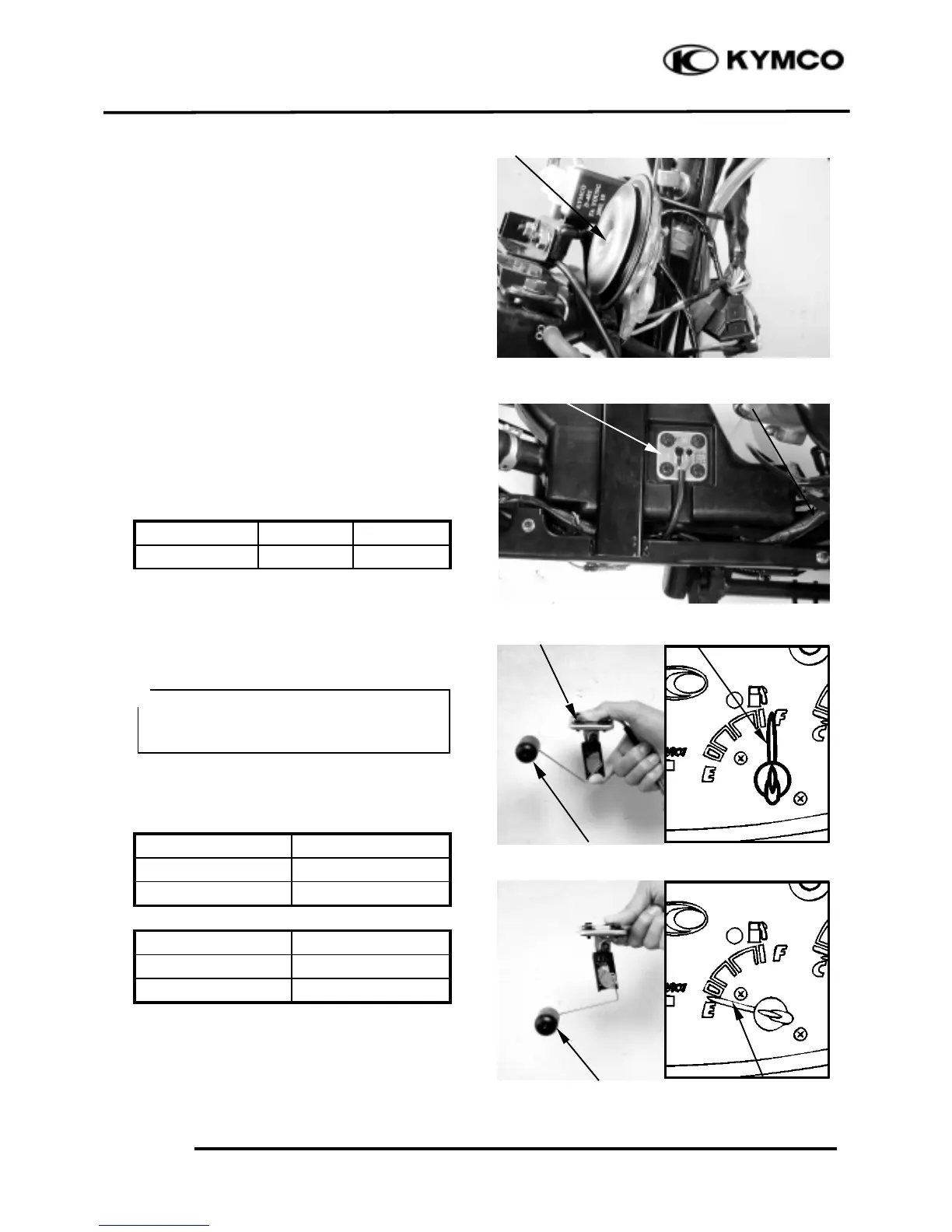

HORN INSPECTION
Remove the front cover. (
!
2-5)
Disconnect the horn wire couplers.
The horn is normal if it sounds when a 12V
battery is connected across the horn wire
terminals.
FUEL UNIT
FUEL UNIT INSPECTION
Remove the fuel unit.
Disconnect the fuel unit wire connectors.
Measure the resistance between the fuel unit
wire terminals with the float at upper and
lower positions.
Wire Terminals
Upper
Lower
Y/W_ G
9.1_ 9.3W
95_ 96W
Use the W range for YF-3501
FUEL METER INSPECTION
Connect the fuel unit wire connectors and
turn the ignition switch “ON”.
Check the fuel meter for correct indication by
moving the fuel unit float up and down.
Float Position
Display
Upper
Much (Full)
Lower
Less (Empty)
Wire Terminals
Display
Free
From Much to Less
Apply
From Less to Much
The fuel meter is normal if it operates as
above indicated. If not, check for loosely
tightened nuts, poorly connected terminals or
shorted wires.
Fuel Unit
Before performing the following test,
operate the turn signals to determine that
the battery circuit is normal.
＊
Horn
Upper
Fuel Full
Lower
. Fuel Empty
Fuel Unit
