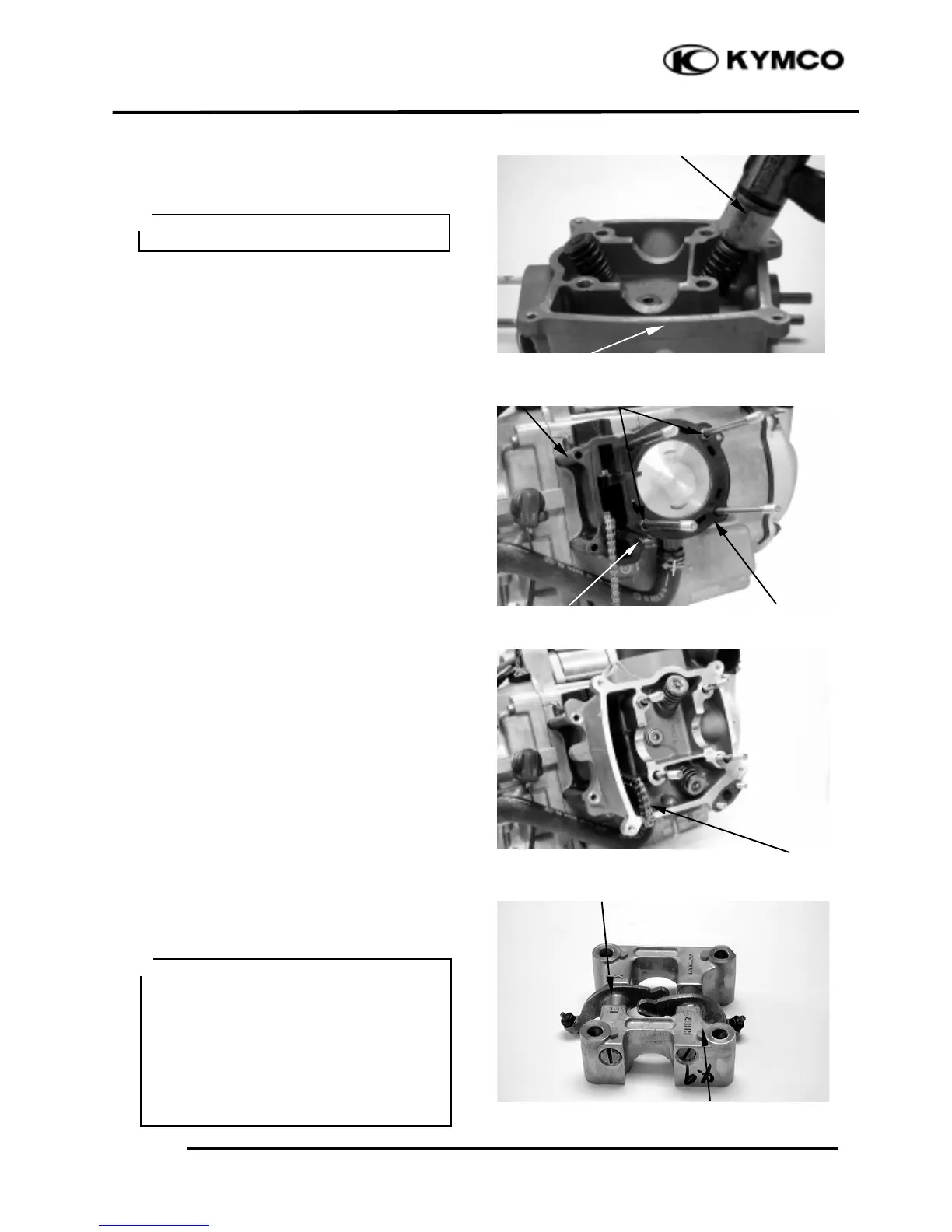

Tap the valve stems gently with a plastic
hammer to firmly seat the cotters.
CYLINDER HEAD INSTALLATION
Install the cam chain guide.
Install the dowel pins and a new cylinder
head gasket.
Install the cylinder head and take out the cam
chain
Assemble the camshaft holder.
First install the intake and exhaust valve
rocker arms; then install the rocker arm shafts.
Valve Rocker Arms
Plastic Hammer
Cam Chain
Cylinder Head
Camshaft Holder
Be careful not to damage the valves.
＊
• Install the exhaust valve rocker
arm shaft on the “EX” side of the
camshaft holder and the exhaust rocker
arm shaft is shorter.
• Clean the intake valve rocker arm
shaft off any grease before installation.
• Align the cutout on the exhaust
valve rocker arm shaft with the bolt of
the camshaft holder.
＊
Cam Chain Guide
Cylinder
Cylinder Head Gasket
Dowel Pins
