19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS
19-3
PEOPL E 25 0

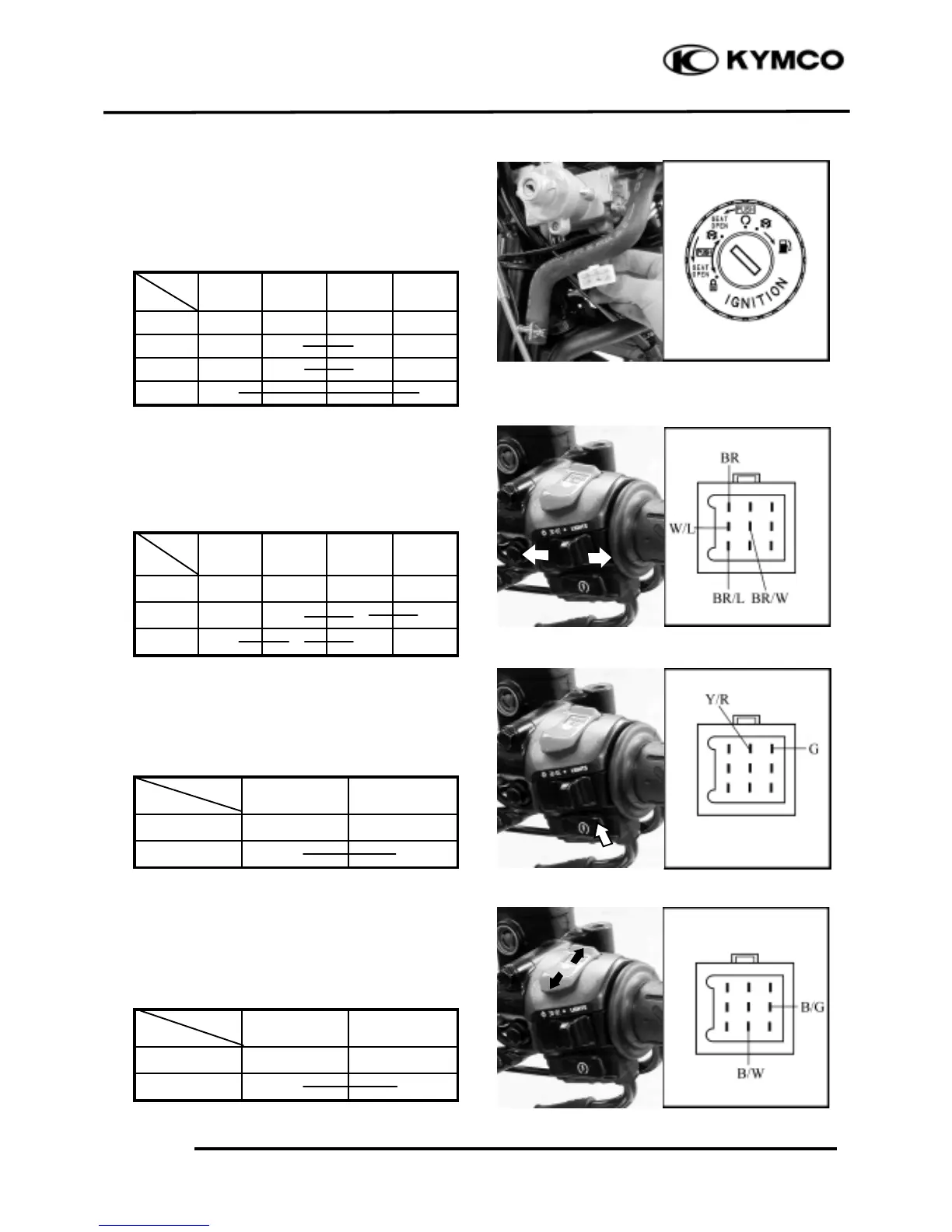

SWITCHES
IGNITION SWITCH INSPECTION
Remove the frame front covers. (
!
2-5)
Disconnect the ignition switch wire couplers.
Check for continuity between the wire
terminals.
Color
Position
Red
Black/Wh
ite
Green
Black
PARK
LOCK
○
○
OFF
○
○
ON
○
○
HEADLIGHT SWITCH INSPECTION
Remove the handlebar front covers. (
!
2-3)
Disconnect the headlight switch wire
couplers. Check for continuity between the
wire terminals.
Color
Position
White /
Blue
Brown/
Blue
Brown
Brown/
White
n
P
○
○
○
H
○
○
○
STARTER SWITCH INSPECTION
Remove the handlebar front covers. (
!
2-3)
Disconnect the starter switch wire couplers.
Depress the starter button and check for
continuity between the wire terminals.
Color
Position
Yellow/Red
Green
FREE
PUSH
○
○
ENGINE STOP SWITCH
Remove the handlebar front cover. (
!
2-3)
Disconnect the wire couplers.
Checks for continuity between the engine
stop switch wire terminals.
Color
Position
Black/White
Black/Green
OFF
ON
○
○
