Maintenance work on the carrier
7.7 Transfer case
7 - 46 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018

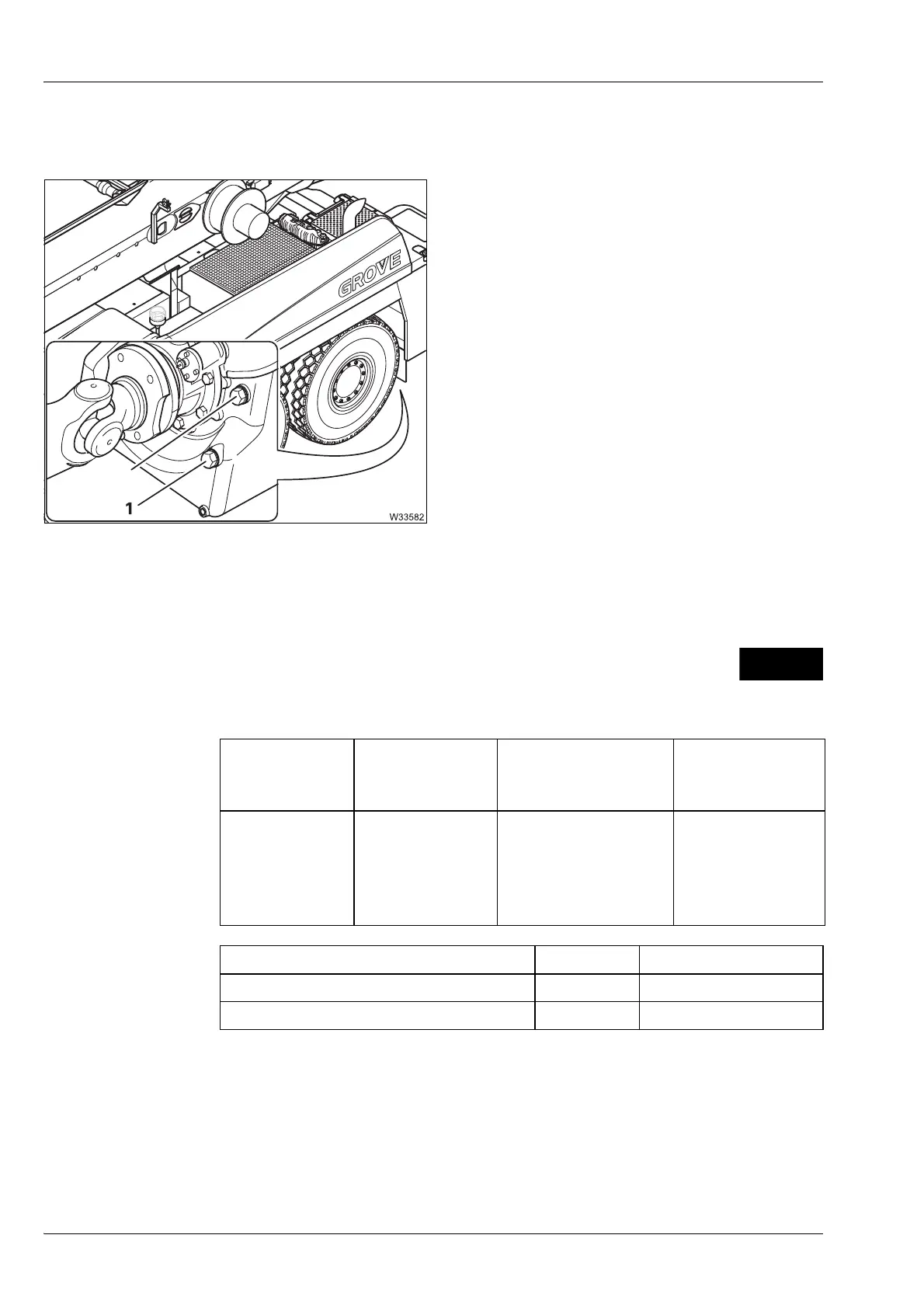

Checking the oil
level
• Place a clean container under the screw (1).
• Remove the drain plug (1).
About 3 litres (0.8 gal) of oil will then flow
from the opening (1) (the oil radiator is
mounted above).
• Check that the oil reaches the lower edge
of the opening (1).
• Fit a new gasket and tighten the drain
plug (1).
• Remove the drain plug (2).
• Top up with fresh oil if necessary to achieve
an oil quantity of about 3 litres (0.8 gal)
in the container.
• Pour the oil from the container into the opening (2).
• Fit a new gasket and tighten the drain plug (2).
7.7.3 Changing the oil
Oil, spare parts,
tools
– Receptacle, approx. 20 ltr (5,0 gal);
à p. 2 - 4.
Prerequisites – The truck crane must be raised on outriggers or parked over an
inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
2
M 6
Gear oil in
litres (gal)
Designation
according to
DIN 51502
Specification
Classification
GROVE part no.
15 (4)
(with oil cooler)
12 (3.2)
(without oil
cooler)
C - LPF M
IL-L 2105 B
API-GL-5
Viscosity:
Hyp SAE
90
ISO - VG 220
00552891
Designation Quantity GROVE part no.
Gasket 16 x 20 Cu DIN 7603 1 00117134
Gasket 30 x 36 Cu DIN 7603 2 00117151
