Manitowoc Grove GMK6300L-1 Maintenance Manual

Maintenance work on the carrier
7.13 Compressed air system
13.02.2018
Maintenance manual 3 302 719 en 7 - 79
GMK6300L-1
7.13.3 Replacing the filter cartridge of the compressed
air drier
Spare parts
and tools
– Strap wrench.
Prerequisites – The truck crane must be raised on outriggers or parked over an
inspection pit.
–
The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The covers have been removed;
à p. 7 - 1.
– The engine, transmission and transfer case have cooled down.
Changing the filter
cartridge

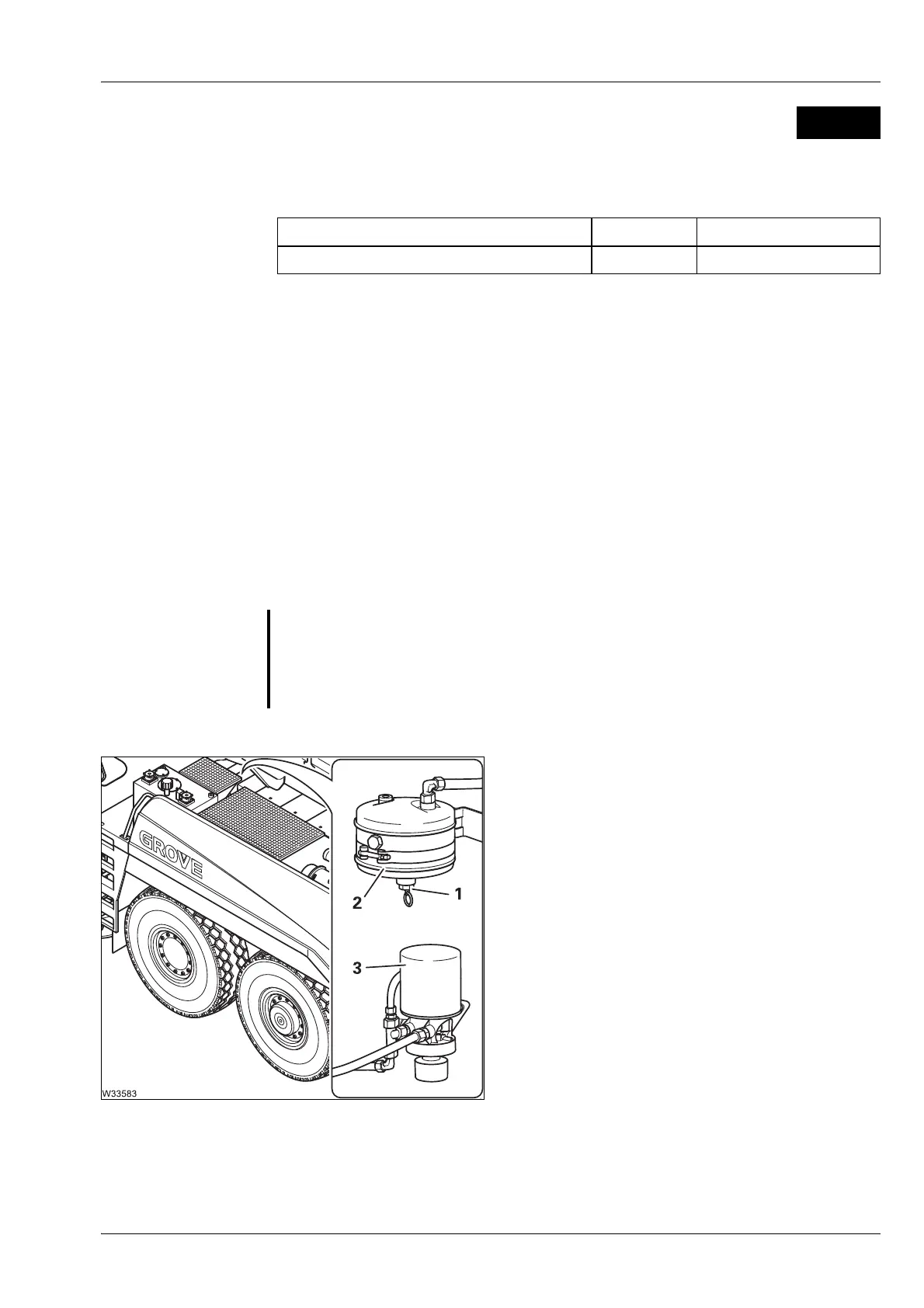

• Using the valve (1), release all the air
from the reservoir (2).
• Replace the filter cartridge (3) using the
strap wrench (lubricate gasket slightly).
M 12
Designation Quantity GROVE part no.
Filter cartridge 1 04156032
G
Risk of injury from escaping compressed air.
If the reservoir (2) is not completely
vented, the compressed air drier will
be under pressure.
Bleed the reservoir until air no longer escapes from the valve.
