Manitowoc Grove GMK6300L-1 Maintenance Manual

Maintenance work on the superstructure
8.11 Hoist ropes
13.02.2018
Maintenance manual 3 302 719 en 8 - 89
GMK6300L-1
8.11 Hoist ropes
8.11.1 Checking the winding
Prerequisites – Camera monitoring of the hoists from the crane cab must be switched on;
à Manual de instrucciones.
– One hook block must be reeved;
à Manual de instrucciones.
– The main boom must be raised to about 30°;
à Manual de instrucciones.
– The engine must be started.
Checking

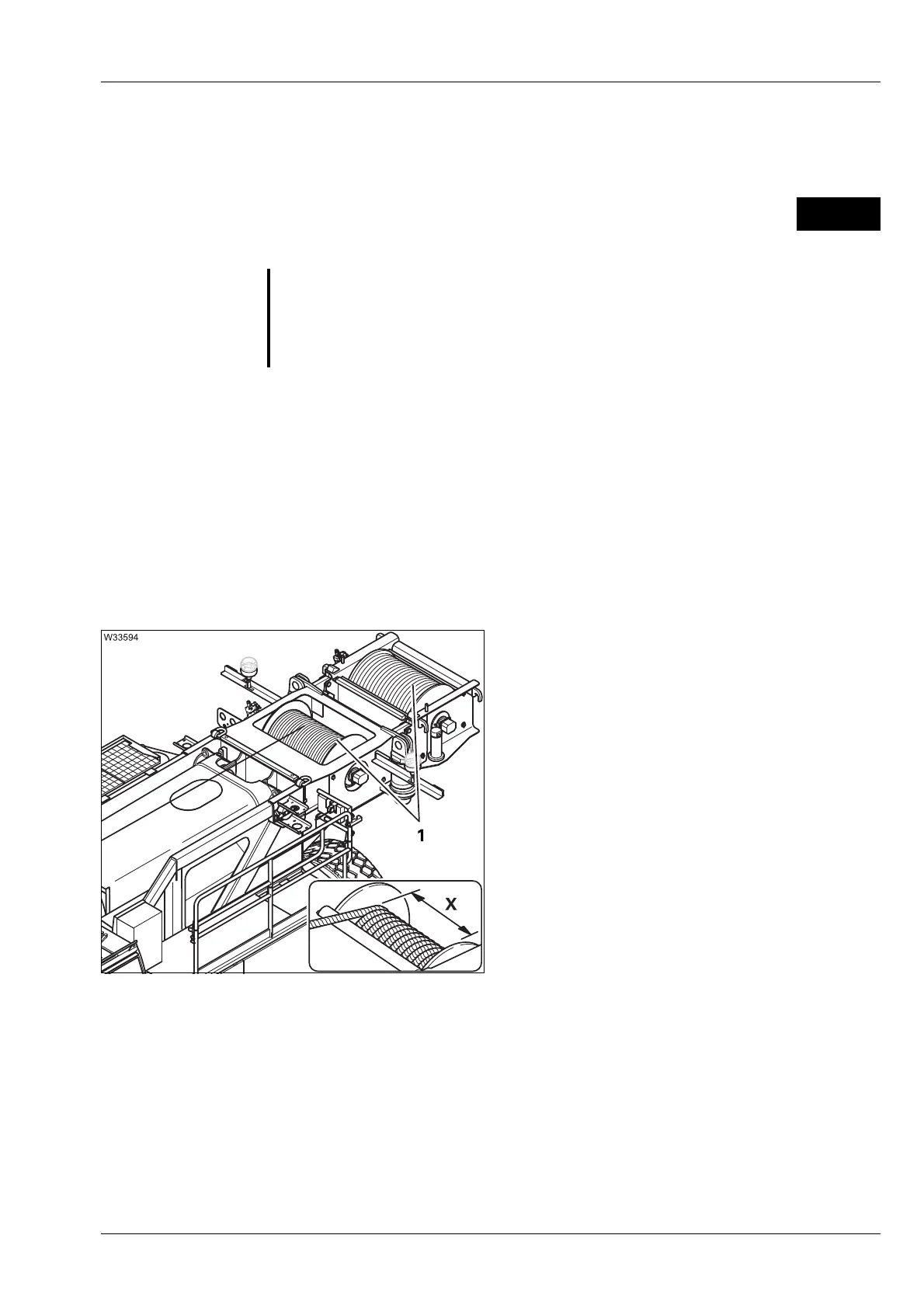

Always check the entire length of the winding
of the ropes (1).
• Slowly perform the lowering movement until
the rope has moved over the complete
width (X) of the rope drum.
– The rope must be evenly wound.
– The rope turns on the drum must be
evenly spaced at a distance of 0 to 2 mm
(0 to 0.08 in).
– The cross-over points must be offset
by approximately 180°.
H
The ropes of the top layer lie over the ropes of the bottom layer at the
cross-over points.
D
G
Risk of accidents when the rope drum is turning.
Keep away from the rope drum while it is turning.
This will prevent your limbs from being drawn in and getting crushed.
