7.8 Axle lines
7 - 58 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018
7.8.6 Lubricating the Cardan shafts in the axle lines
H
Check all Cardan shafts to see if they have grease nipples.
Cardan shafts with grease nipples must be serviced, Cardan shafts without
grease nipples
are maintenance-free.
Grease, spare
parts, tools
– Grease gun from the tool set.
Prerequisites – The truck crane must be raised on outriggers or parked over an
inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The wheels must be turned as far as they will go, so that the lubricating
n
ipples on the sides of the final drives are more easily accessible.
Lubricating
Cardan shafts (2) are fitted only to the
12 x 8 x 12 drive.

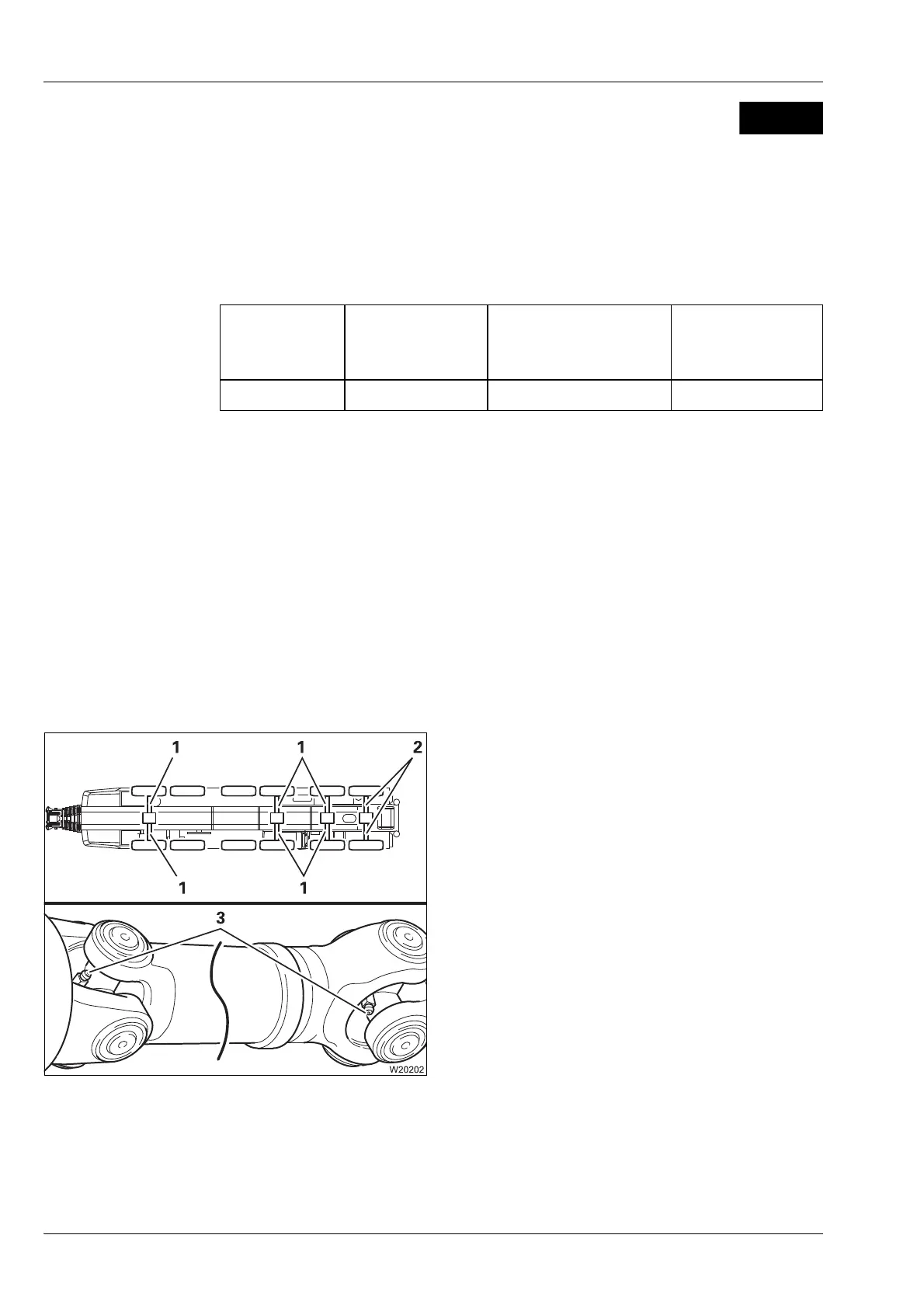

• Check which Cardan shafts (1) and (2)
have lubricating nipples (3).
• Clean the grease nipples (3).
• Inject grease into the grease nipples until
grease escapes from the bearing points.
Do not inject grease with excessive force,
otherwise the lip seals may be damaged.
• Remove the excess grease.
M 1
Lubricating
grease
Designation
according to
DIN 51502
Specification
Classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
