Maintenance work on the superstructure
8.4 Fuel system
13.02.2018
Maintenance manual 3 302 719 en 8 - 27
GMK6300L-1
8.4 Fuel system

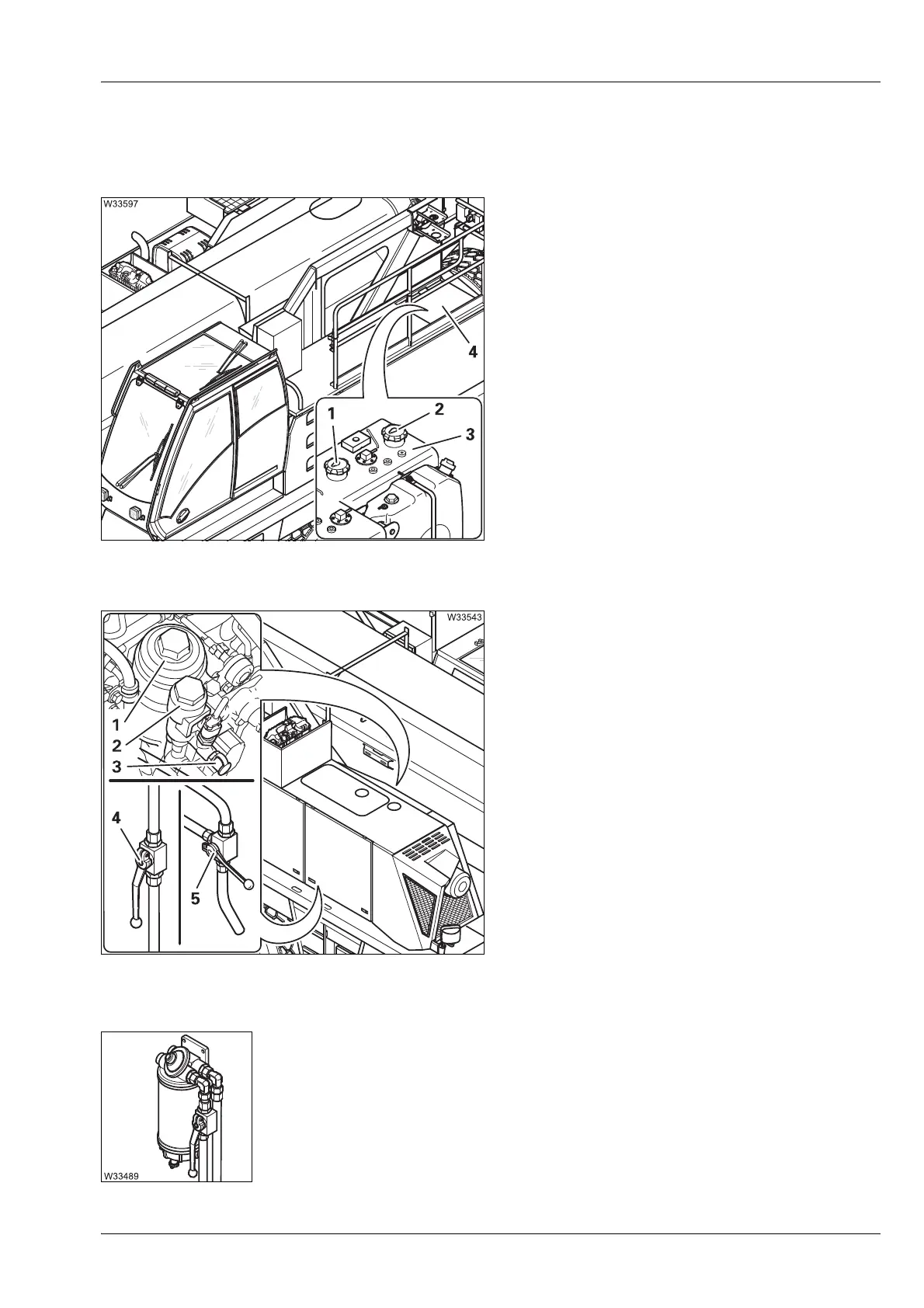

To fill up with fuel you must open the cover (4)
over the 2-chamber fuel tank (3);
à Manual de
instrucciones
.
The following elements are installed in the
superstructure fuel line:
Option
As an option, the truck crane GMK6300L-1 can be fitted with the fuel filter 1
(GROVE part number 04170515). This allows water to be removed from the
fuel more easily.
1 Fuel tank
for the carrier engine
480 litres (126 gal)
2 Fuel tank
for the superstructure engine
200 litres (52 gal)
1 Fuel filter 3 (large)
2 Fuel filter 2 (small)
3 Spigot for connecting
the fuel hand pump;
supplied separately;
Grove part no. 04162464;
for venting the fuel line.
4 Valve
in the supply line;
for shutting off the supply.
5 3-way valve
in the return line,
for draining the fuel
